Front Right CV Intermediate Shaft for 2007-2009 Hyundai Santa Fe - TrakMotive HY-3511

$133.99
Sold out

Vehicles this part fits

    Part number: HY-3511
    UPC: 844084080639
    Condition: New
    Weight: 10.00 LBS
    Item Package Quantity: 1
    $133.99

    Out of stock

    Have questions?

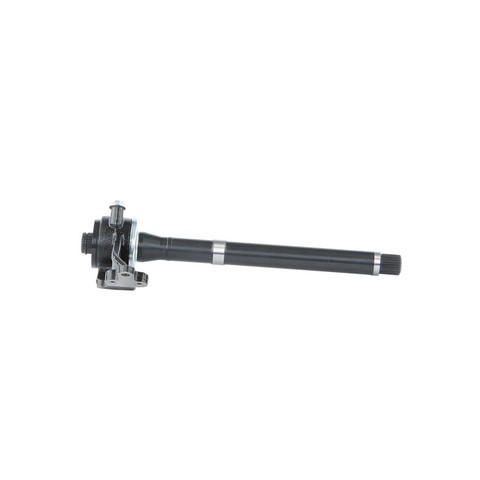

    TrakMotive CV Intermediate Shaft P/N:HY-3511
    TrakMotive CV Intermediate Shaft P/N:HY-3511
    $133.99
    $133.99

    TrakMotive HY-3511 front right CV intermediate shaft for the 2007-2009 Hyundai Santa Fe carries drive torque between the transmission and the front right axle. This new shaft is also called a CV inner shaft.

    • 27 inboard splines and 28 outboard splines for the spline connection at each end
    • Overall compressed length of 16.65 in (423 mm)
    • No bolt holes or shaft bolts at either end, because both ends connect by spline

    Quick facts

    • Part: TrakMotive HY-3511 CV intermediate shaft
    • Fits: 2007-2009 Hyundai Santa Fe
    • Position: Front right
    • Condition: New

    Vibration that builds with speed, or a clunk or click when you accelerate or turn, can mean this shaft is worn. A worn outer CV joint or a failing wheel bearing can produce similar signs, so pin down the source before you buy.

    Fits

    It fits the 2007-2009 Hyundai Santa Fe. This listing is one shaft for the front right; the other side of that front axle is a separate part and is normally done at the same time.

    Specifications

    Fit and size

    • Position: front right
    • Quantity per application: 1 (front right)
    • Overall compressed length: 16.65 in (423 mm)
    • Inboard splines: 27
    • Outboard splines: 28
    • Bolt holes: none

    Build and materials

    • Shaft connection: spline at both ends
    • Condition: new
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One front right CV intermediate shaft; the 2007-2009 Hyundai Santa Fe takes one on that side. The axle nut is not included.

    Interchange: NEX37005 · 495602B150

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    NEX37005, 495602B150, HY-3511

    Frequently Asked Questions

    Is the TrakMotive HY-3511 right for the 2007-2009 Hyundai Santa Fe?

    Yes. The TrakMotive HY-3511 fits the 2007-2009 Hyundai Santa Fe on the front right side, and this listing is one shaft.

    Does the HY-3511 come with an axle nut?

    No. The TrakMotive HY-3511 does not include an axle nut. This listing is one front right CV intermediate shaft.

    How many splines does this CV intermediate shaft have?

    It has 27 splines on the inboard end and 28 on the outboard end. Both ends connect by spline, with no bolt holes.

    Can a vibration at speed come from a worn front right intermediate shaft?

    Yes, vibration at speed or clicking and clunking on acceleration or turns can be signs of a worn shaft, and a shop can confirm the cause. Have it checked promptly.

    Does the number 495602B150 match this shaft?

    Yes. 495602B150 is an interchange number for the TrakMotive HY-3511 front right shaft, and NEX37005 is another.
