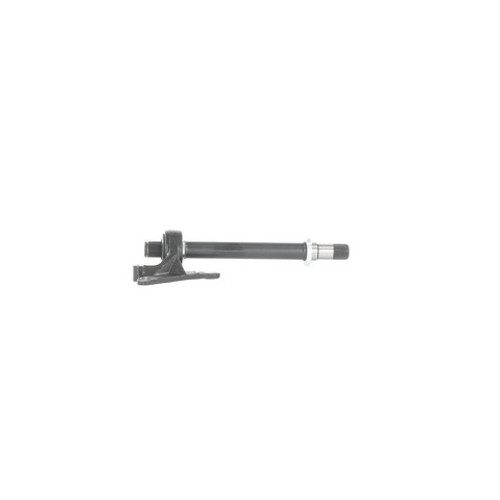

Front Right CV Intermediate Shaft for 2006-2009 Hyundai Santa Fe - TrakMotive HY-3512

$140.99

Vehicles this part fits

    Part number: HY-3512
    UPC: 844084080653
    Condition: New
    Weight: 10.30 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $140.99
    Adding to cart… The item has been added

    Have questions?

    TrakMotive CV Intermediate Shaft P/N:HY-3512
    TrakMotive CV Intermediate Shaft P/N:HY-3512
    $140.99
    $140.99

    TrakMotive HY-3512 front right CV intermediate shaft for the 2006-2009 Hyundai Santa Fe carries drive torque toward the front right wheel. The shaft is new and is also sold as a CV inner shaft.

    • Splined connection at both ends, with 27 inboard splines and 28 outboard splines
    • No bolt holes and no shaft bolts at either the inboard or outboard joint
    • Made for the front right position, one shaft per listing

    Quick facts

    • Part: TrakMotive HY-3512 CV intermediate shaft
    • Fits: 2006-2009 Hyundai Santa Fe
    • Position: Front right
    • Condition: New

    A worn intermediate shaft can show up as vibration while driving or a clunk or rattle from the front right side. A tire, wheel bearing or outer CV joint can cause similar signs, so with the engine off, look for torn boots or grease thrown on nearby parts, and leave any running test to a shop before you replace the shaft.

    Fits

    It is a direct-fit replacement for the 2006-2009 Hyundai Santa Fe. This listing is one shaft for the front right; the front left side is ordered separately.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity per vehicle: 1
    • Overall compressed length: 423 mm (16.65 in)
    • Inboard splines: 27
    • Outboard splines: 28
    • Shaft connection: spline at both ends
    • Bolt holes: none

    Build and materials

    • Condition: New
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One CV intermediate shaft. The listing holds one shaft, and the front right of the 2006-2009 Hyundai Santa Fe takes one. The axle nut is not included, so plan on a new one.

    Interchange: NEX37004 · 495602B100 · 495602B100SJ · 5602B100

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    NEX37004, 495602B100, 495602B100SJ, 5602B100, HY-3512

    Frequently Asked Questions

    Is the TrakMotive HY-3512 the right shaft for a 2006-2009 Hyundai Santa Fe?

    Yes. TrakMotive HY-3512 is a front right CV intermediate shaft listed for the 2006-2009 Hyundai Santa Fe.

    Does this CV intermediate shaft come with an axle nut?

    No. The axle nut is not included, so plan on a new one. The listing is a single shaft.

    How many splines does the HY-3512 have at each end?

    TrakMotive HY-3512 has 27 splines on the inboard end and 28 on the outboard end. Its overall compressed length is 423 mm (16.65 in).

    How can I tell if a front right intermediate shaft is going bad?

    Vibration while driving, a clunk or rattle from the front right side, or torn boots with thrown grease can be signs. A shop can confirm with a test.

    Does 5602B100 interchange with the TrakMotive HY-3512?

    Yes. 5602B100 is an interchange number for TrakMotive HY-3512, along with 495602B100, 495602B100SJ and NEX37004.
