Front CV Intermediate Shaft for 2011-2012 Kia Sorento & More - TrakMotive HY-3534

$110.99

Vehicles this part fits

    Part number: HY-3534
    UPC: 840140517118
    Condition: New
    Weight: 11.60 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $110.99
    Adding to cart… The item has been added

    Have questions?

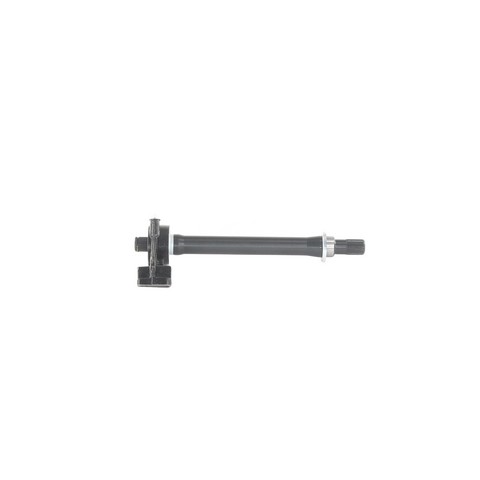

    TrakMotive CV Intermediate Shaft P/N:HY-3534
    TrakMotive CV Intermediate Shaft P/N:HY-3534
    $110.99
    $110.99

    TrakMotive HY-3534 front CV intermediate shaft for the 2011-2012 Kia Sorento and other vehicles carries drive torque toward the front wheels. This new unit is also called a CV inner shaft.

    • New CV inner shaft with 28 splines on the inboard end and 28 on the outboard end
    • Overall compressed length of 435 mm (17 1/8 in)
    • Inboard bolt with M8*1 thread, 12 mm (1/2 in) head and 21.5 mm (7/8 in) length

    Quick facts

    • Part: TrakMotive HY-3534 CV intermediate shaft
    • Fits: 2011-2012 Kia Sorento and other vehicles
    • Position: Front
    • Condition: New

    A clunk when turning, a knock on acceleration or vibration while driving can mean the shaft is worn, though a worn CV joint or a wheel bearing can be behind them too, so find the cause before replacing it. This listing is one shaft; the front axle takes two, one on each side, so order two and fit them together.

    Fits

    It is a direct-fit replacement for the 2010-2012 Hyundai Santa Fe and the 2011-2012 Kia Sorento.

    Specifications

    Fit and size

    • Position: front
    • Quantity per vehicle: 2
    • Overall compressed length: 435 mm (17 1/8 in)
    • Inboard splines: 28
    • Outboard splines: 28
    • Inboard shaft bolts: 2, M8*1 thread, 12 mm (1/2 in) head, 21.5 mm (7/8 in) long

    Build and materials

    • Condition: new
    • ABS tone ring: not included
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One CV intermediate shaft. An axle nut and an ABS tone ring are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    HY-3534

    Frequently Asked Questions

    Does the TrakMotive HY-3534 fit the 2010-2012 Hyundai Santa Fe?

    Yes. TrakMotive HY-3534 is a front CV intermediate shaft that fits the 2010-2012 Hyundai Santa Fe.

    Does this front CV intermediate shaft come with an axle nut?

    No. The listing is one CV intermediate shaft; an axle nut and an ABS tone ring are not included.

    How many splines does this TrakMotive CV intermediate shaft have?

    TrakMotive HY-3534 has 28 splines on the inboard end and 28 on the outboard end, with an overall compressed length of 435 mm (17 1/8 in).

    Can a clunk when turning come from a worn CV intermediate shaft?

    Yes, it can. A clunk when turning or vibration while driving can be signs of a worn shaft, so have it checked by a shop promptly rather than driving on it.

    Is the TrakMotive HY-3534 covered by a warranty?

    Yes. TrakMotive backs the HY-3534 with a limited lifetime warranty.
