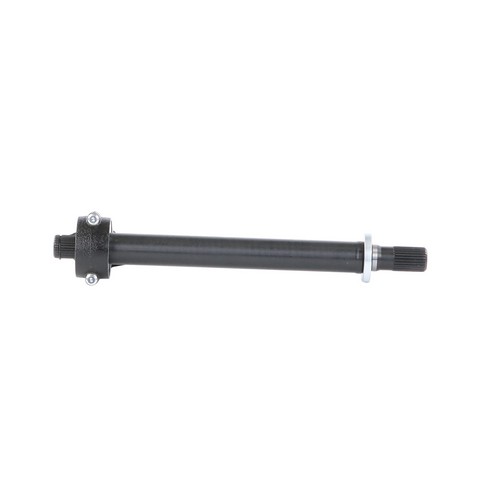

TrakMotive KA-3530 front CV intermediate shaft for the 2021-2023 Kia Sorento carries drive torque from the transmission toward the front wheel. This TrakMotive CV intermediate shaft is also called a CV inner shaft.
- 28 splines on the inboard end and 28 on the outboard end
- Overall compressed length of 446 mm (17.56 in)
- Supplied new
Quick facts
- Part: TrakMotive KA-3530 CV intermediate shaft
- Fits: 2021-2023 Kia Sorento
- Position: Front
- Condition: New
A worn shaft can show up as clicking or clunking in turns, or as vibration when you accelerate. Before you replace it, rule out the front axle shafts, wheel bearings and mounts, because worn parts there can produce similar noise or vibration.
Fits
It fits the 2021-2023 Kia Sorento. This listing is one shaft for the front axle; the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Overall compressed length: 446 mm (17.56 in)
- Inboard splines: 28
- Outboard splines: 28
Build and materials
- Condition: New
- ABS tone ring: not included
- Country of origin: China
- Warranty: TrakMotive limited lifetime warranty
In the box
One CV intermediate shaft; the 2021-2023 Kia Sorento takes two. The axle nut is not included, and the old one may not be reusable, so plan on a new one.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is the TrakMotive KA-3530 the right CV intermediate shaft for the 2021-2023 Kia Sorento?
Yes. TrakMotive KA-3530 is a front CV intermediate shaft for the 2021-2023 Kia Sorento, which takes two.
Does the TrakMotive KA-3530 include the axle nut or an ABS tone ring?
No. Neither the axle nut nor the ABS tone ring is included. This listing holds one CV intermediate shaft.
How many splines does this front CV intermediate shaft have?
It has 28 inboard splines and 28 outboard splines, with an overall compressed length of 446 mm (17.56 in).
What can a worn front CV intermediate shaft sound or feel like?
It can cause clicking or clunking in turns, or vibration when you accelerate. A shop can inspect the driveline to confirm where the noise comes from.
Does TrakMotive cover the KA-3530 with a warranty?
Yes. TrakMotive backs the KA-3530 with a limited lifetime warranty.
