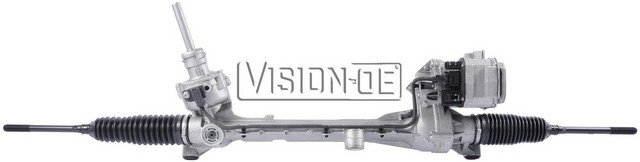

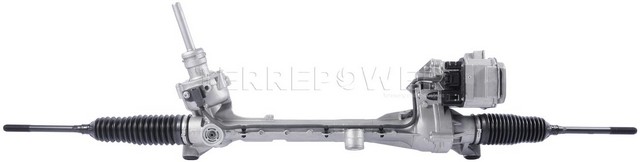

    Vision OE Rack and Pinion Assembly P/N:201-0152E
    Vision OE Rack and Pinion Assembly P/N:201-0152E
    $1,426.99
    $1,426.99

    TERREPOWER 201-0152E rack and pinion for the 2012-2018 Ford Focus moves the wheels from side to side when you turn the steering wheel. This remanufactured rack and pinion assembly is the electric power steering type, designed for dependability and reliability across the service life of the vehicle.

    • Electric type power steering rack
    • Motor, control module and inner tie rods included
    • 2.50 total turns lock to lock
    • Three mounting holes

    Quick facts

    • Part: TERREPOWER 201-0152E rack and pinion
    • Also called: rack and pinion assembly
    • Fits: 2012-2018 Ford Focus
    • Condition: Remanufactured

    Heavy or uneven steering effort, play in the steering wheel or a steering warning light can mean the rack needs attention. Worn outer tie rod ends, worn suspension parts or an alignment problem can be behind the same signs, so find the cause before buying.

    Fits

    This rack and pinion fits the 2012-2018 Ford Focus.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Mounting holes: 3
    • End to end length: 51.25 in (1301.75 mm)
    • Input shaft length: 3.88 in (98.55 mm)
    • Input shaft diameter: 0.72 in (18.29 mm)
    • Total turns lock to lock: 2.50

    Build and materials

    • Type: Electric
    • Condition: Remanufactured
    • Connectors: 2-pin and 3-pin
    • Country of origin: Mexico

    In the box

    One rack and pinion. This listing holds one, and the 2012-2018 Ford Focus takes one. The outer tie rods are not included.

    Interchange: BV6Z-3504-CE · BV6Z-3504-EE · BV6Z-3504-GE · BV6Z-3504-JE · BV6Z-3504-LE · BV6Z-3504-NE · CV6Z-3504-CE · CV6Z-3504-DE · CV6Z-3504-EP · CV6Z-3504-FE · CV6Z-3504-H · CV6Z-3504-HE · CV6Z-3504-JH · CV6Z-3504-R · CV6Z-3504-XE · CV6Z-3504-ZJH · CV6Z-3504-ZLG · HV6Z-3504-EP

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    BV6Z-3504-CE, BV6Z-3504-EE, BV6Z-3504-GE, BV6Z-3504-JE, BV6Z-3504-LE, BV6Z-3504-NE, CV6Z-3504-CE, CV6Z-3504-DE, CV6Z-3504-EP, CV6Z-3504-FE, CV6Z-3504-H, CV6Z-3504-HE, CV6Z-3504-JH, CV6Z-3504-R, CV6Z-3504-XE, CV6Z-3504-ZJH, CV6Z-3504-ZLG, HV6Z-3504-EP

    Frequently Asked Questions

    Will this rack and pinion fit a 2012 Ford Focus, and what other years does it cover?

    Yes. TERREPOWER 201-0152E fits the 2012-2018 Ford Focus, so a 2012 model is covered.

    Does this electric rack and pinion come with outer tie rods?

    No. The outer tie rods are not included. This rack and pinion comes with the inner tie rods, the motor and the control module.

    How many turns lock to lock does the TERREPOWER 201-0152E have?

    TERREPOWER 201-0152E has 2.50 total turns lock to lock and an input shaft 0.72 in (18.29 mm) in diameter.

    Can a failing electric steering rack cause a steering warning light?

    Yes, it can be one cause, so a steering warning light is worth having checked promptly. A shop can scan the system and test the electric assist.

    Does the TERREPOWER 201-0152E replace number CV6Z-3504-CE?

    Yes. TERREPOWER 201-0152E lists CV6Z-3504-CE among the numbers this remanufactured rack and pinion replaces.
