Remanufactured Rack and Pinion for 2014-2017 Chevrolet Equinox & More - TERREPOWER 203-0155E

$1,359.99
WARNING:California Proposition 65▾
Sold out

Vehicles this part fits

    Part number: 203-0155E
    UPC: 060199256664
    Condition: Refurbished
    Weight: 54.64 LBS
    Item Package Quantity: 1
    $1,359.99

    Out of stock

    Have questions?

    Vision OE Rack and Pinion Assembly P/N:203-0155E
    Vision OE Rack and Pinion Assembly P/N:203-0155E
    $1,359.99
    $1,359.99

    TERREPOWER 203-0155E rack and pinion for the 2014-2017 Chevrolet Equinox and other vehicles turns steering wheel rotation into sideways motion that steers the wheels. This remanufactured unit is an electric power steering rack and pinion.

    • Remanufactured design intended for dependability and reliability throughout the vehicle's service life
    • Electric type power steering rack and pinion
    • Connector A has 3 pins and connector B has 5 pins

    Quick facts

    • Part: TERREPOWER 203-0155E rack and pinion
    • Also called: rack and pinion assembly
    • Fits: 2014-2017 Chevrolet Equinox and other vehicles
    • Condition: Remanufactured

    Heavy or uneven steering, a clunk when turning or a steering warning light can mean a rack and pinion is wearing out. These signs alone do not prove the rack and pinion is the problem, since a worn outer tie rod end is another common cause.

    Fits

    This rack and pinion fits the 2014-2017 Chevrolet Equinox and the 2014-2017 GMC Terrain, and both take one unit.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • End-to-end length: 49 in (1244.6 mm)

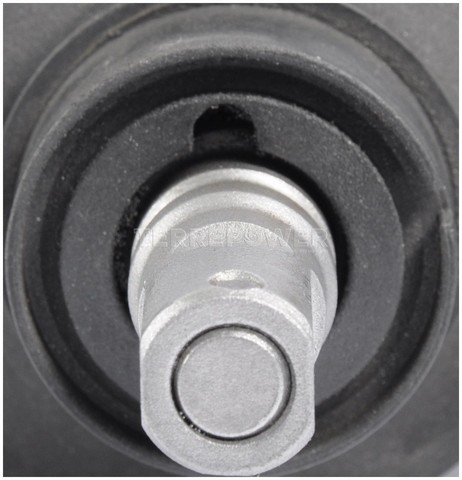

    • Input shaft length: 1.560 in (39.62 mm)
    • Steering input shaft diameter: 0.67 in (17.02 mm)
    • Total turns lock to lock: 2.940

    Build and materials

    • Type: electric
    • Condition: remanufactured
    • Country of origin: Mexico

    In the box

    One remanufactured rack and pinion with its motor, control module and inner tie rods.

    Interchange: 23142854 · 84037522

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    23142854, 84037522

    Frequently Asked Questions

    Will the TERREPOWER 203-0155E fit a 2014-2017 GMC Terrain?

    Yes, the TERREPOWER 203-0155E rack and pinion fits the 2014-2017 GMC Terrain and the 2014-2017 Chevrolet Equinox, one unit per vehicle.

    Does this rack and pinion assembly include the motor and control module?

    Yes. This remanufactured unit comes with the motor, the control module and the inner tie rods.

    How many turns lock to lock does the TERREPOWER 203-0155E have?

    The TERREPOWER 203-0155E has 2.940 total turns lock to lock, with a steering input shaft diameter of 17.02 mm (0.67 in).

    How long is this electric rack and pinion from end to end?

    End-to-end length is 49 in (1244.6 mm), a measurement you can compare against your old rack.

    Which other part numbers does the TERREPOWER 203-0155E replace?

    TERREPOWER 203-0155E replaces numbers 23142854 and 84037522.
