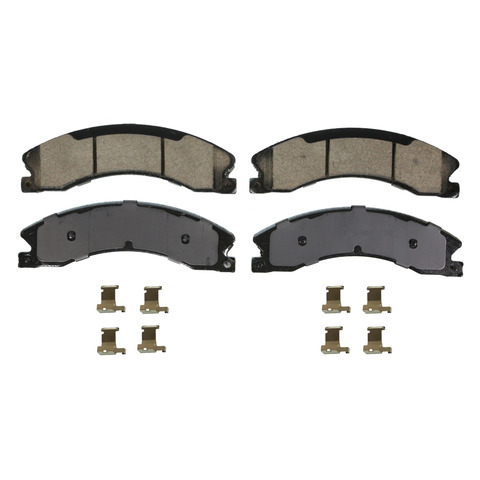

Handle frequent stops and heavy loads with the Wagner SevereDuty SX1565A Rear Disc Brake Pad Set. It installs as a direct-fit replacement for the 2012-2021 Nissan NV1500 [All], 2012-2021 Nissan NV2500 [All], 2012-2021 Nissan NV3500 [All], and 2016-2019 Nissan Titan XD [All], mounting at the rear axle.
The SevereDuty line is designed and tested for fleets, police-pursuit use, and vehicles driven in demanding conditions such as frequent stopping, gear hauling, and heavy loads.

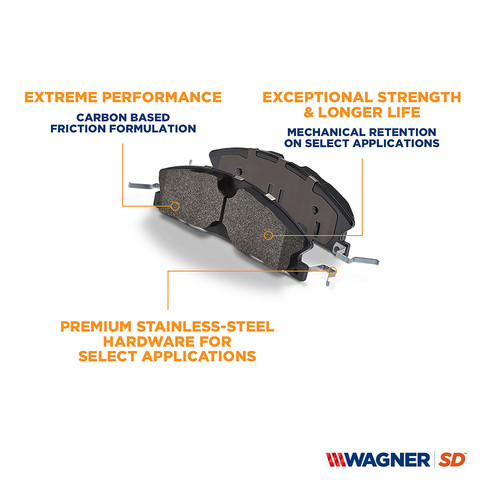

- Friction material: Semi-metallic carbon-based compound featuring the Wagner OE25 zero-copper friction formulation.
- OE-style design: Includes OE-style shims, slots, and chamfered edges.
- Included hardware: Pad shims and abutment clips are included; premium stainless-steel hardware kits are included for key applications.
- Wear indication: A mechanical pad wear sensor is included to signal when the pads may need replacing.
Rigorous OE-style on-vehicle testing validates braking performance under extreme heat, frequent stopping, and heavy loads. FMSI 8774-D1565. Made in the United States. For balanced, even braking, replace the pads on both sides of the axle together and inspect the rotors and hardware as directed by the service procedure.
Interchange: D1565A · BC1565A · BSD1565A · GMKD1565A · 106.15651 · D40601PA0A · D40601PA1A · P1565A · DG1565A · 161565A · 171565A
Manufacturer part number SX1565A
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Where does this pad set mount?
The Wagner SX1565A is a rear disc brake pad set for the listed Nissan applications; it installs at the rear axle.
What friction material do these pads use?
A semi-metallic, carbon-based compound using Wagner's OE25 zero-copper friction formulation, engineered for durable braking in demanding, heavy-load conditions.
Does the set include hardware?
Pad shims and abutment clips are included, and premium stainless-steel hardware kits are included for key applications. Check your specific application for what is supplied.
Is there a wear sensor?
Yes, a mechanical pad wear sensor is included to provide a signal when the pads may need replacing.
Which vehicles does this fit?
It is a direct-fit replacement for the 2012-2021 Nissan NV1500, NV2500, and NV3500, and the 2016-2019 Nissan Titan XD [All]. See the Buyer's Guide tab to confirm your vehicle.
