Exhaust Pipe Flange Gasket for 1989-1995 Toyota Pickup - Walker 31564

$5.99

Vehicles this part fits

    Part number: 31564
    UPC: 086387315647
    Condition: New
    Weight: 0.20 LBS
    Item Package Quantity: 1
    $5.99
    Adding to cart… The item has been added

    Have questions?

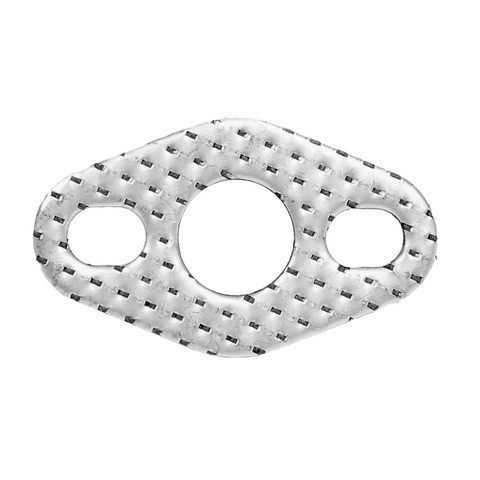

    Walker Exhaust Oxygen Sensor Gasket P/N:31564
    Walker Exhaust Oxygen Sensor Gasket P/N:31564
    $5.99
    $5.99

    Walker Exhaust 31564 exhaust pipe flange gasket for the 1989-1995 Toyota Pickup 4-cylinder 2.4L seals a two-bolt exhaust flange joint. It is also sold as an oxygen sensor gasket.

    • Perforated metal and fiber laminate, 0.060 in thick
    • Designed to resist heat
    • Two-bolt style with bolt holes spaced 1.750 in center to center
    • Tested on the vehicle and validated for on-road performance
    • Reviewed and approved by Walker engineers through research, development and testing

    Quick facts

    • Part: Walker Exhaust 31564 exhaust pipe flange gasket
    • Fits: 1989-1995 Toyota Pickup 4-cylinder 2.4L
    • Material: Perforated metal and fiber laminate
    • Condition: New

    A leaking flange joint can show up as exhaust ticking, a fume smell or sooty residue around the flange. With the engine off and cool, look at the joint for soot trails or a crushed gasket before replacing it, since a loose bolt or a damaged flange could leave similar marks. This application takes one gasket.

    Fits

    This Walker Exhaust flange gasket is a direct-fit replacement for the 1989-1995 Toyota Pickup 4-cylinder 2.4L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Style: 2 bolt
    • Thickness: 0.060 in
    • Outer diameter: 0.750 in
    • Bolt hole diameter: .375 x .5 in
    • Bolt hole center to center: 1.750 in
    • Port size: 0.720 x 0.720 in

    Build and materials

    • Material: Perforated metal and fiber laminate
    • Condition: New

    Installation notes

    • Slotted bolt holes where applicable, so the gasket slips into place.

    Interchange: 874-291 · 13185-1 · EG24185-001 · EG24185-010
    9291 · EG24185 · 45405

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    9291, 874-291, 13185-1, EG24185, EG24185-001, EG24185-010, 45405

    Frequently Asked Questions

    Does the Walker Exhaust 31564 fit a 1989-1995 Toyota Pickup 4-cylinder 2.4L?

    Yes, Walker Exhaust 31564 is a direct-fit replacement for the 1989-1995 Toyota Pickup 4-cylinder 2.4L, and that application takes one gasket.

    What is the Walker 31564 gasket made of?

    This gasket is a perforated metal and fiber laminate, 0.060 in thick, with a 0.750 in outer diameter.

    How far apart are the bolt holes on this two-bolt flange gasket?

    Walker Exhaust 31564 has its two bolt holes 1.750 in apart, center to center. Each hole measures .375 x .5 in.

    What are the signs of a leaking exhaust flange gasket?

    Ticking from the exhaust, a fume smell or black soot around the joint can mean the gasket is leaking. A shop can test the exhaust to confirm.

    Does Walker Exhaust 31564 replace EG24185-001?

    Yes, EG24185-001 is one of the numbers Walker Exhaust 31564 replaces, along with 874-291, 13185-1 and 45405.
