Right Camshaft Position Sensor for 2017-2020 Toyota 86 & More - Walker 235-1795

$115.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: 235-1795
    UPC: 724620137624
    Condition: New
    Weight: 0.10 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $115.99
    Adding to cart… The item has been added

    Have questions?

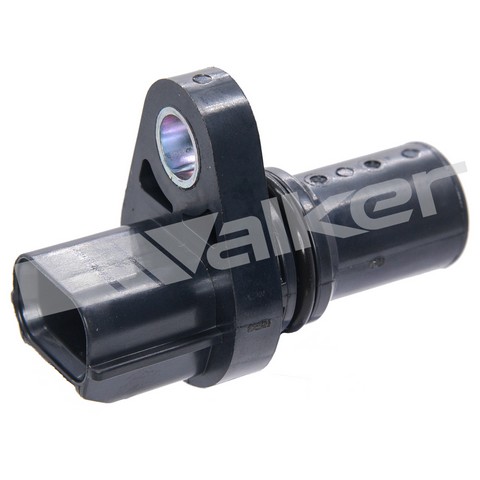

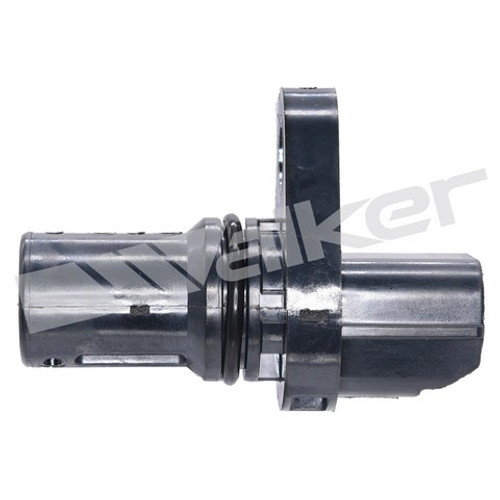

    Walker Products Engine Camshaft Position Sensor P/N:235-1795
    Walker Products Engine Camshaft Position Sensor P/N:235-1795
    $115.99
    $115.99

    Walker Products 235-1795 right camshaft position sensor for the 2017-2020 Toyota 86 H4 2.0L and other vehicles tells the engine control module where the camshaft is. Also called a cam sensor, it helps the module time fuel injection and ignition.

    • Hall-effect sensing: a magnet moving past the sensor as the camshaft rotates generates the voltage signal for the module
    • Built to withstand temperature changes, vibration and exposure to engine fluids in the engine compartment
    • Works with the crankshaft position sensor and the engine computer to help keep ignition timing and fuel supply correct
    • Supports variable valve timing by tracking camshaft position

    Quick facts

    • Part: Walker Products 235-1795 camshaft position sensor
    • Also called: cam sensor
    • Fits: 2017-2020 Toyota 86 H4 2.0L and other vehicles
    • Position: Exhaust (right)
    • Condition: New

    A failing camshaft position sensor can show up as hard starting, rough running or a check engine light. Those signs can have other causes, so with the engine off and cool, look over the connector and wiring for corrosion, cracks or a loose fit before replacing the sensor.

    Fits

    This sensor fits the 2017-2020 Toyota 86 H4 2.0L and the 2013-2016 Scion FR-S H4 2.0L, and each takes one. The listing is one sensor for the right exhaust position; a sensor for another position is a separate part.

    Specifications

    Fit and size

    • Position: exhaust (right)
    • Quantity per vehicle: 1
    • Connector: 1 oval, female
    • Terminals: 3 blade
    • Wires: 3

    Build and materials

    • Grade: standard replacement
    • Condition: new
    • Mounting bracket: included
    • Wiring harness: not included
    • Country of origin: China

    In the box

    One camshaft position sensor with a mounting bracket. The wiring harness is not included.

    Interchange: 5S13537 · CSS1941 · CSS1441 · EC0192 · PC951 · SU00300413 · SU14945

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    5S13537, CSS1941, CSS1441, EC0192, PC951, SU00300413, SU14945

    Frequently Asked Questions

    Does the Walker Products 235-1795 camshaft position sensor fit the 2013-2016 Scion FR-S H4 2.0L?

    Yes. Walker Products 235-1795 is listed for the 2013-2016 Scion FR-S H4 2.0L with a quantity of 1, as the right exhaust position sensor.

    Does this camshaft position sensor come with a wiring harness?

    No, the wiring harness is not included; the sensor comes with a mounting bracket.

    How many terminals does the Walker Products 235-1795 connector have?

    The Walker Products 235-1795 has one oval female connector with three blade terminals and three wires.

    What symptoms can a failing camshaft position sensor show?

    Hard starting, rough running or a check engine light can be signs. A shop can scan for codes and test the sensor with the engine running.

    Is Walker Products 235-1795 a replacement for part number CSS1941?

    Yes, CSS1941 is one of the other-brand numbers this sensor replaces, along with 5S13537, EC0192 and PC951; the Interchange line lists all of them.
