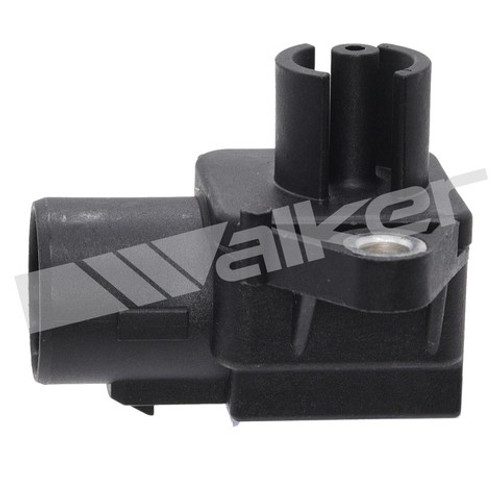

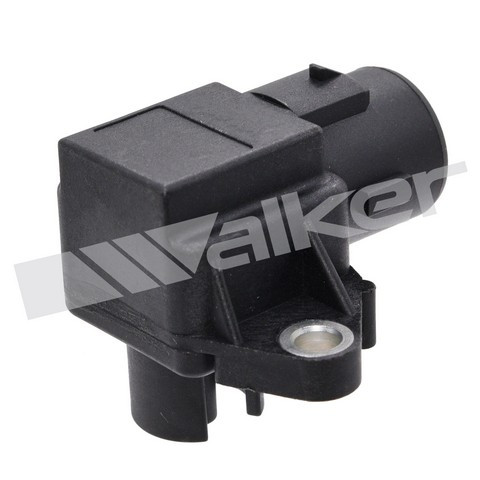

Walker Products 225-1107 manifold absolute pressure sensor for the 1997-2005 Acura NSX V6 3.0L or 3.2L and other vehicles reads the pressure inside the intake manifold for the engine computer. The computer combines that reading with other inputs to work out how much fuel to deliver. It is an OE replacement sensor engineered to meet OE specifications for electrical output, pressure range and connector fit.
- Measures manifold pressure through a changing voltage signal
- Engine control module uses the reading to calculate engine load and adjust fuel injection and ignition timing
- Built to withstand high engine bay temperatures, vibration and intake air contaminants
- Tested for accuracy, responsiveness and long-term reliability
Quick facts
- Part: Walker Products 225-1107 manifold absolute pressure sensor
- Fits: 1997-2005 Acura NSX V6 3.0L or 3.2L and other vehicles
- Condition: New
A failing sensor can show up as drivability problems or a check engine code, though other parts can produce the same signs. Before replacing it, look over the connector and terminals with the engine off for cracks, corrosion or bent blades. This listing is one sensor.
Fits
This sensor is listed for a wide range of Acura and Honda models, led by the 1997-2005 Acura NSX V6 3.0L or 3.2L, the 1996-2004 Acura RL V6 3.5L and the 1996-1998 Acura TL V6 3.2L, and each of these takes one. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Port quantity: 1
- Connector quantity: 1
- Terminal quantity: 3
Build and materials
- Connector: female, circular, black
- Terminals: male blade
- Condition: New
- Country of origin: China
Interchange: 10.3031
37830P13003 · 5S2401 · EC1652 · 219326 · 15077 · 0798002990 · 798002990 · AS106 · 16862 · SU4191
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
37830P13003, 5S2401, EC1652, 219326, 15077, 10.3031, 0798002990, 798002990, AS106, 16862, SU4191
Frequently Asked Questions
Is the Walker Products 225-1107 manifold absolute pressure sensor right for a 1996-2004 Acura RL V6 3.5L?
Yes. Walker Products 225-1107 is listed for the 1996-2004 Acura RL V6 3.5L, and that car takes one. For other models, open the "Vehicles it fits" section and check your exact engine.
How many terminals does the Walker 225-1107 connector have?
Walker 225-1107 has one black, circular, female connector with 3 male blade terminals. It also has one port.
Can a bad manifold absolute pressure sensor cause a rough idle or a check engine light?
It can be one of several possible causes. The engine computer uses the sensor's pressure reading to set fuel and timing, so a faulty reading can show up as drivability trouble or a stored code.
Does Walker 225-1107 interchange with 37830P13003?
Yes. 37830P13003 is one of the numbers Walker Products 225-1107 replaces, along with 5S2401, EC1652 and 10.3031.
What does the engine computer do with the reading from this manifold absolute pressure sensor?
The engine control module uses the pressure reading to calculate engine load. It then adjusts fuel injection and ignition timing.
