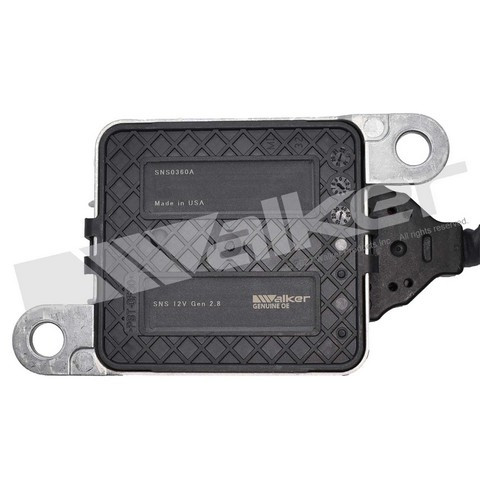

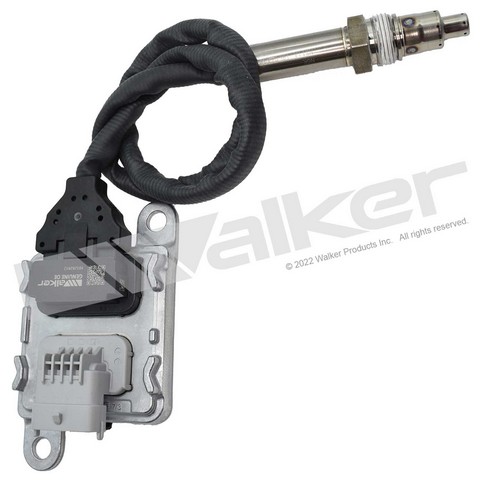

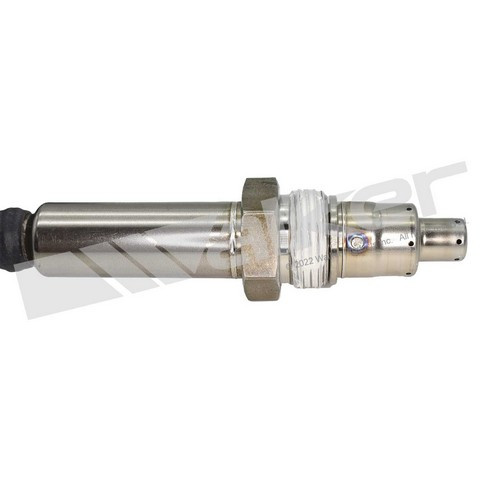

Walker Products NOx (Nitrogen Oxide) Sensor P/N:285-1009
Walker Products 285-1002 nitrogen oxide (nox) sensor for the 2018 Ram 2500 6-cylinder 6.7L and other vehicles measures nitrogen oxide in the exhaust and reports it to the ECM. Its readings help the ECM control emissions and protect components such as the diesel particulate filter.
A warning light or an emissions or SCR fault can mean the NOx sensor has failed, though other causes are possible. With the engine off and cool, look over the connector and wiring harness for damage or corrosion, and track down what is behind the fault before swapping the sensor. A shop can test the sensor itself.
This listing is one downstream sensor. It is a direct OE replacement for the 2018 Ram 2500 6-cylinder 6.7L and the 2018 Ram 3500 6-cylinder 6.7L, and both take one.
Fit and size
Build and materials
Interchange: 68307226AA · 68307226AB · 68307226AC · NOX012
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the Walker Products 285-1002 NOx sensor fit the 2018 Ram 3500 6-cylinder 6.7L?
Yes, Walker Products 285-1002 fits the 2018 Ram 3500 6-cylinder 6.7L as well as the 2018 Ram 2500 6-cylinder 6.7L. Each takes one sensor.
Is the Walker Products 285-1002 an upstream or downstream NOx sensor?
It is a downstream NOx sensor. This listing is one sensor, and the vehicles it fits take one.
How long is the wiring harness on this NOx sensor?
The wiring harness is 590 mm long. The connector is female, oblong and gray, with 4 blade terminals.
Can a bad NOx sensor trigger an SCR or emissions warning?
It can, since the sensor feeds NOx readings to the ECM, but other faults can set the same warning. A shop can test the sensor to confirm.
Is the Walker Products 285-1002 plug-and-play?
Yes, Walker Products 285-1002 is a plug-and-play design with OE connectors and harness lengths for direct replacement.
