Dorman - First Stop Drum Brake Wheel Cylinder P/N:W86000

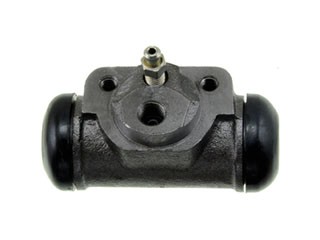

DORMAN W101604 rear drum brake wheel cylinder for the 1980-1993 Ford Mustang and other vehicles uses brake fluid pressure to push the shoes against the drum. It is a direct replacement for the original wheel cylinder, engineered for the same fit, function and performance.
A soft or sinking brake pedal, rear brakes that pull to one side, or fluid around the rear drum during a brake service can mean a wheel cylinder is leaking. Before you replace it, rule out worn shoes, a damaged drum and a leaking brake line, which can each mimic these signs.
The vehicles it fits include the 1980-1993 Ford Mustang, the 2002-2009 Mazda B2300 and the 2002-2009 Mazda B4000. If your car is not one of those, search your year and model in the "Vehicles it fits" section. This listing is one cylinder for the rear axle; the other rear wheel is normally done at the same time.
Fit and size
Build and materials
One wheel cylinder with its bleeder screw. The bleeder screw cap is not included. This listing holds one wheel cylinder, and a car that fits this part takes two.
Interchange: 784-34003 · 84-34003 · 101-1377 · W-81003 · W-87012 · 134.61003 · 135.61003 · 375-54013
18E148 · W906448 · 33825 · 4313056 · 5018211AA · WC13825 · 2L5Z2262CA · 2L5Z2262CB · E0ZZ2261A · E0ZZ2262A · 101604 · 109532 · 1F6026610 · 1F6026610A · WC37400 · F101604 · WC101604
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the DORMAN W101604 rear wheel cylinder fit a 1980-1993 Ford Mustang?
Yes. DORMAN W101604 fits the 1980-1993 Ford Mustang, and it also fits the 2002-2009 Mazda B2300. Look up your own year and model in the "Vehicles it fits" section.
What is this DORMAN drum brake wheel cylinder made of?
The body is cast iron, with EPDM rubber cups and boots. The bore surface is tested to give the pressure cups a good sealing surface.
Does the DORMAN W101604 wheel cylinder come with a bleeder screw?
Yes. DORMAN W101604 comes with its bleeder screw, but the bleeder screw cap is not included.
What size is the inlet thread on this rear wheel cylinder?
The inlet thread is 3/8-24 UNF, and the inside diameter is 0.75 in. Match both against your old cylinder when you compare.
What can a leaking rear wheel cylinder look like?
A soft brake pedal, rear brakes that pull to one side, or fluid around the rear drum during a brake service can all be signs. A shop can test the rear brakes if you are unsure.
