Front Brake Rotor for 2002-2006 Toyota Camry & More - ADVICS A6F005U

$110.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: A6F005U
    EAN: 4562372115981
    Condition: New
    Weight: 17.50 LBS
    Item Package Quantity: 1
    $110.99
    Adding to cart… The item has been added

    Have questions?

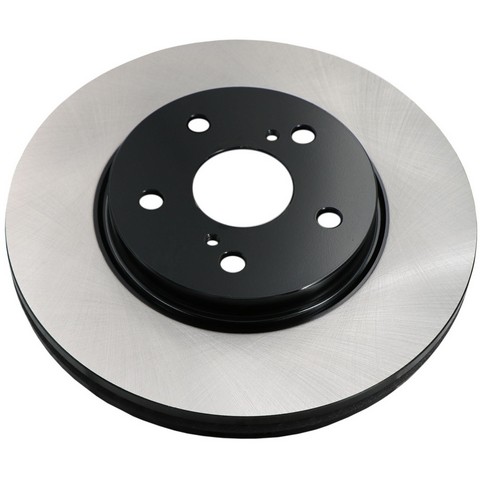

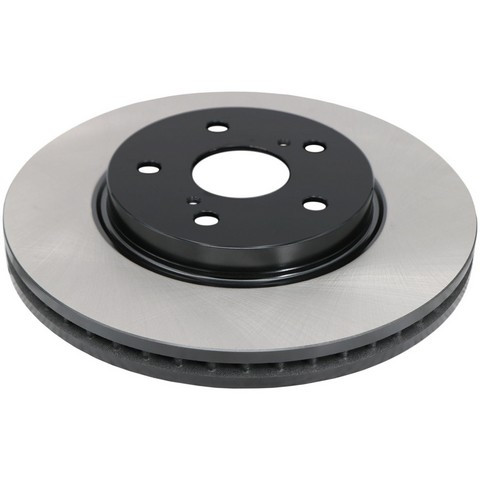

    ADVICS Disc Brake Rotor P/N:A6F005U
    ADVICS Disc Brake Rotor P/N:A6F005U
    $110.99
    $110.99

    ADVICS A6F005U front brake rotor for the 2002-2006 Toyota Camry and other vehicles gives the brake pads a vented, smooth surface to clamp against. It is one of the ADVICS brake rotors sold as an OE replacement disc brake rotor.

    • Vented high-carbon body that lets air flow freely and efficiently
    • High-carbon metallurgy maintains thermal stability, which lowers the chance of warping and extends pad and rotor life
    • Corrosion protection coating
    • Smooth, non-directional surface finish

    Quick facts

    • Part: ADVICS A6F005U brake rotor
    • Also called: disc brake rotor
    • Fits: 2002-2006 Toyota Camry and other vehicles
    • Position: Front
    • Material: High Carbon
    • Condition: New

    Pedal pulsation, steering-wheel shake under braking or deep grooves in the rotor face can mean a front rotor is worn. Before you replace it, rule out a sticking caliper or worn pads, since either can give similar signs. A rotor worn below its discard thickness is due for replacement.

    Fits

    The 2002-2006 Toyota Camry, 2004-2010 Toyota Sienna and 2005-2007 Toyota Avalon are among the vehicles this rotor fits. The 2002-2006 Toyota Camry takes two. This listing is one rotor, and the other front side is normally replaced at the same time. It is constructed to OEM weight, vane count and air gap.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Outside diameter: 296.0 mm (11.654 in)
    • Center hole diameter: 62 mm
    • Bolt circle diameter: 114.3 mm (4.5 in), 5 lug holes
    • Overall height: 49.2 mm (1.937 in)
    • Nominal thickness: 28.0 mm (1.102 in)
    • Discard thickness: 26.0 mm (1.024 in)

    Build and materials

    • Type: Vented
    • Surface: Smooth, non-directional finish
    • Material: High Carbon
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    Interchange: 120.44125 · 121.44125 · 604-76075
    18A1485 · YH145471 · 31314 · 31266 · 145471 · 50011225 · C31314 · YH145471P · BR31314 · 126059 · JBR972 · 980077 · 980077FZN · 4351208030 · 4351208040 · 4351228180 · 4351228181 · 4351233100 · 4351258011 · BD126059

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    18A1485, YH145471, 31314, 31266, 145471, 50011225, C31314, YH145471P, 120.44125, 121.44125, BR31314, 604-76075, A6F005U, 126059, JBR972, 980077, 980077FZN, 4351208030, 4351208040, 4351228180, 4351228181, 4351233100, 4351258011, BD126059

    Frequently Asked Questions

    Is this front brake rotor the right one for the 2002-2006 Toyota Camry?

    Yes. ADVICS A6F005U is a front rotor for the 2002-2006 Toyota Camry and other vehicles. If your car is not named here, look it up in the "Vehicles it fits" section.

    Do these brake rotors fit the 2004-2010 Toyota Sienna?

    Yes. This front rotor fits the 2004-2010 Toyota Sienna, and each vehicle takes two.

    What are the diameter and bolt pattern of this front rotor?

    The outside diameter is 296.0 mm (11.654 in) and the center hole is 62 mm. It has 5 lug holes on a 114.3 mm (4.5 in) bolt circle, and the overall height is 49.2 mm.

    How thin can this front brake rotor get before it needs replacing?

    Nominal thickness is 28.0 mm (1.102 in) and the discard thickness is 26.0 mm (1.024 in). Measure it during a brake service with the car parked and the brakes cool.

    Does the ADVICS A6F005U rotor come with an ABS tone ring?

    No. The ABS tone ring is not included with ADVICS A6F005U.
