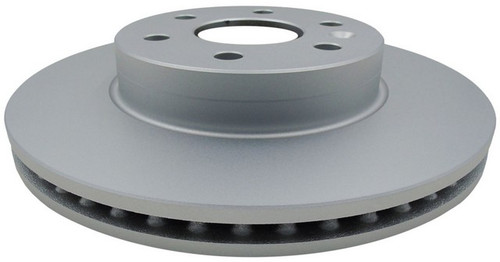

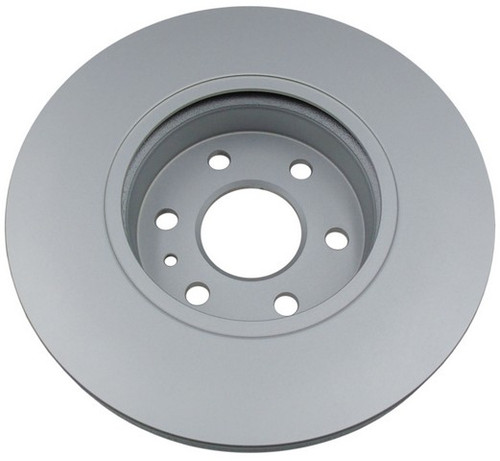

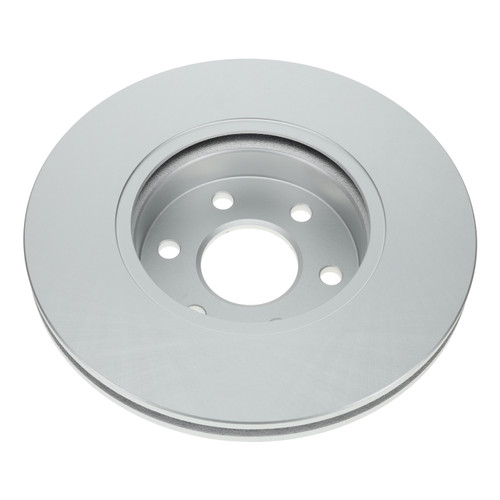

ADVICS L6F358U front brake rotor for the 2015-2020 Chevrolet Colorado and other vehicles gives the brake pads a smooth disc to clamp against. The pads squeeze this disc brake rotor to turn wheel motion into heat.
- ADVICS OE Replacement line, made from high carbon material
- High carbon metallurgy for thermal stability, with less chance of warping and longer pad and rotor life
- Vented construction lets air flow freely and efficiently
- Corrosion protection coating
- Smooth, non-directional surface finish
Quick facts
- Part: ADVICS L6F358U brake rotor
- Also called: disc brake rotor
- Fits: 2015-2020 Chevrolet Colorado and other vehicles
- Position: Front
- Material: High carbon
- Condition: New
Pedal pulsation, noise under braking or grooves on the rotor face may mean the rotor is worn. Worn pads or a sticking caliper can be behind these signs too, so find the actual source before you buy. This listing is one rotor, and both front rotors are normally replaced together.
Fits
It fits the 2015-2020 Chevrolet Colorado and the 2015-2020 GMC Canyon. Weight, vane count and air gap are built to OEM values.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 2
- Outside diameter: 310.0 mm (12.205 in)
- Center hole diameter: 70.9 mm
- Bolt circle: 120.0 mm (4.724 in), 6 lug holes
- Overall height: 60.9 mm (2.398 in)
- Nominal thickness: 27.0 mm (1.063 in)
- Discard thickness: 25.0 mm (0.984 in)
Build and materials
- Type: vented
- Surface: smooth, non-directional finish
- Material: high carbon
- Coating: corrosion protection coating
- ABS tone ring: not included
- Condition: new
- Country of origin: China
In the box
One front brake rotor. The vehicle takes two, and the ABS tone ring is not included.
Interchange: 1407-528579 · 120.66078 · 320.66078F · BR901416-02 · 600-48062 · 604-48062
18A82038 · YH528579 · 55243 · 72036DL · PRT6383 · YH528579P · BR901416 · 94775725 · 901416 · AR82188 · AR82188XPR · 582038 · 582038FZN · BD180678 · BD180678E
This part cross-references / interchanges with the following part numbers:
18A82038, YH528579, 55243, 72036DL, 1407-528579, PRT6383, YH528579P, 120.66078, 320.66078F, BR901416, BR901416-02, 600-48062, 604-48062, 94775725, L6F358U, 901416, AR82188, AR82188XPR, 582038, 582038FZN, BD180678, BD180678E
Frequently Asked Questions
Is this a Chevy Colorado brake rotor for the 2015-2020 model years?
Yes. ADVICS L6F358U is a front brake rotor for the 2015-2020 Chevrolet Colorado, and that vehicle takes two.
Does this work as a GMC Canyon brake rotor for the 2015-2020 model years?
Yes. The same front rotor fits the 2015-2020 GMC Canyon.
Are ADVICS brake rotors like this front one vented or solid?
This ADVICS L6F358U is vented, with a smooth surface, a 310.0 mm outside diameter and a 27.0 mm nominal thickness.
Does this front rotor come with the ABS tone ring?
No. The ABS tone ring is not included with this rotor, which is sold as a single piece.
At what thickness is this rotor worn out?
The discard thickness is 25.0 mm (0.984 in), against a nominal 27.0 mm (1.063 in). Once the rotor measures 25.0 mm or less, it is due for replacement.
