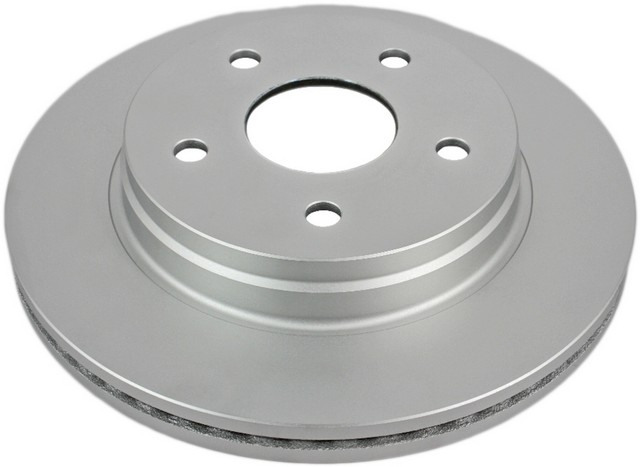

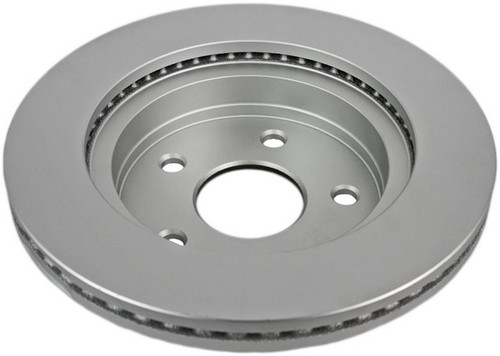

Give your front brakes a fresh, vented braking surface with the ADVICS OE replacement brake rotor, part number P6F199U. It fits many vehicles, among them the 2011-2018 Ram 1500, 2002-2010 Dodge Ram 1500 and 2004-2009 Dodge Durango. See the Buyer's Guide tab for the full list.
This vented front disc brake rotor is made with high-carbon metallurgy. Its design lets air flow freely and efficiently through the rotor, helping it manage the heat produced during braking.
Specifications: 335.9 mm (13.224 in) outside diameter; 28.0 mm (1.102 in) nominal thickness; 26.4 mm (1.039 in) discard thickness; 67.4 mm (2.654 in) overall height; 78.5 mm center hole; 5 lug holes on a 139.7 mm (5.5 in) bolt circle. The ABS tone ring is not included. Country of origin: China.
Each rotor is sold individually. The listed applications use two front rotors, so we recommend replacing both sides together as a matched pair for even, balanced braking.
Will these Ram 1500 rotors fit a 2014 Ram 1500?
Yes. This rotor is listed for the front of the 2011-2018 Ram 1500 and the 2002-2010 Dodge Ram 1500. Check the Buyer's Guide tab to confirm your exact vehicle.
What does this brake rotor do?
It gives the brake pads a surface to clamp against, turning the vehicle's motion into heat that the vented design helps release as air flows through it.
What are the rotor's key dimensions?
It measures 335.9 mm (13.224 in) across, with a 28.0 mm (1.102 in) nominal thickness, a 26.4 mm (1.039 in) discard thickness and 5 lug holes on a 139.7 mm (5.5 in) bolt circle.
Is it sold as a pair, and does it include an ABS tone ring?
It is sold individually and does not include an ABS tone ring. The listed applications use two, so we recommend replacing both front rotors together.
What are signs a rotor may need replacing?
Common signs include a pulsing brake pedal, steering wheel vibration when braking, deep grooves or scoring, and a rotor worn to or below the 26.4 mm (1.039 in) discard thickness.
