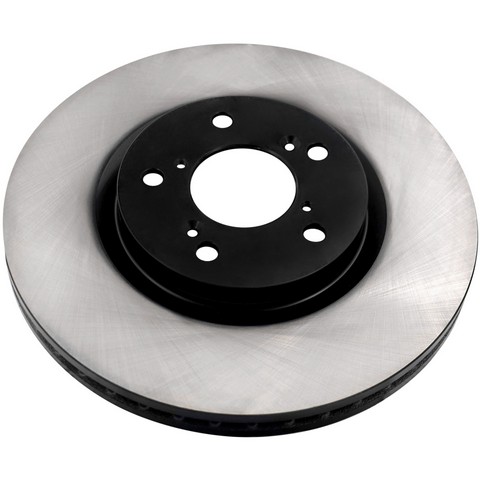

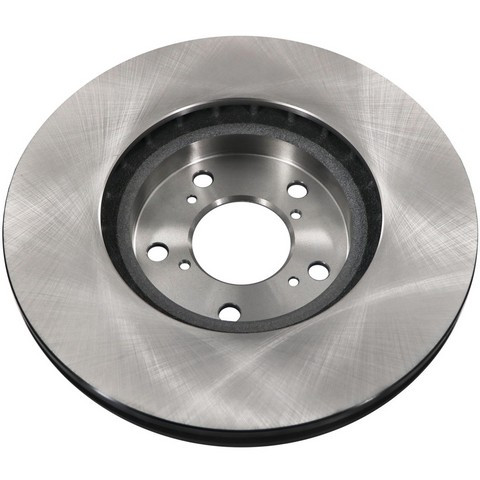

ADVICS C6F090U front brake rotor for the 2006-2014 Honda Ridgeline turns with the wheel and gives the brake pads a surface to clamp, which slows the vehicle. As with other ADVICS brake rotors, it is an OE replacement disc brake rotor.
- High carbon metallurgy for thermal stability, which reduces opportunities for warping and supports longer pad and rotor life
- Vented design that lets air flow freely and efficiently
- Corrosion protection coating
- Smooth, non-directional surface finish
Quick facts
- Part: ADVICS C6F090U brake rotor
- Also called: disc brake rotor
- Fits: 2006-2014 Honda Ridgeline
- Position: Front
- Material: High Carbon
- Condition: New
A pulsing brake pedal, a grinding or squealing noise, or grooves and rust on the disc face can mean the rotor is worn, though worn brake pads or a sticking caliper can be behind the same signs, so find the cause before you replace it.
Fits
This is a brake rotor for the 2006-2014 Honda Ridgeline, constructed to OEM weight, vane count and air gap. The 2006-2014 Honda Ridgeline takes two, and this listing is one rotor, so order two and fit them together.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Outside diameter: 320.0 mm (12.598 in)
- Center hole diameter: 70.2 mm
- Bolt circle: 120.0 mm (4.724 in), 5 lug holes
- Overall height: 47.1 mm (1.854 in)
- Nominal thickness: 28.0 mm (1.102 in)
- Discard thickness: 26.0 mm (1.024 in)
Build and materials
- Type: Vented
- Surface: Smooth, non-directional finish
- Material: High Carbon
- Coating: Corrosion protection coating
- ABS tone ring: not included
- Condition: New
- Country of origin: China
Interchange: 120.40069 · 121.40069 · 320.40069F · 604-59051
18A2317 · YH145770 · 31402 · 26010788 · YH145770P · BR900392 · 45251SJCA50 · 126355 · JBR984 · 980353 · 980353FZN · BD126355
This part cross-references / interchanges with the following part numbers:
18A2317, YH145770, 31402, 26010788, YH145770P, 120.40069, 121.40069, 320.40069F, BR900392, 604-59051, 45251SJCA50, C6F090U, 126355, JBR984, 980353, 980353FZN, BD126355
Frequently Asked Questions
Does the ADVICS C6F090U fit the 2006-2014 Honda Ridgeline?
Yes. The ADVICS C6F090U front rotor fits the 2006-2014 Honda Ridgeline, and the vehicle takes two of them.
What is the discard thickness of this ADVICS C6F090U rotor?
Nominal thickness is 28.0 mm (1.102 in) and discard thickness is 26.0 mm (1.024 in). Measure the cool rotor and compare it with 26.0 mm.
Is this front rotor vented, and what size is it?
It is a vented rotor with a 320.0 mm (12.598 in) outside diameter, a 70.2 mm center hole and 5 lug holes on a 120.0 mm bolt circle.
Does this rotor come with an ABS tone ring?
No. This listing is one front rotor, and the ABS tone ring is not included.
Does the ADVICS C6F090U have a corrosion protection coating?
Yes. The ADVICS C6F090U has a corrosion protection coating and is made of high carbon material for thermal stability.
