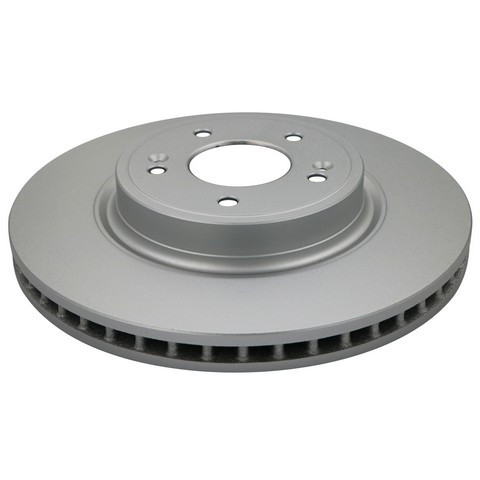

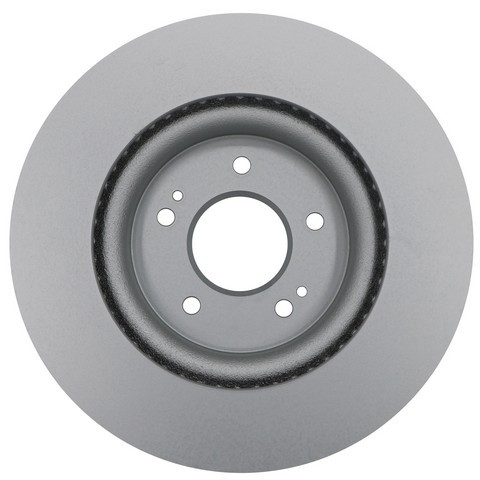

The ADVICS R6F328U front brake rotor for the 2019-2023 Genesis G70 and 2018-2021 Kia Stinger is the vented disc that the front brake pads clamp against to slow the car.
A pulsing brake pedal, a shake through the steering wheel when you brake, or deep grooves on the braking surface found during a brake job can mean the front rotors are worn. Those signs alone don't prove the rotor is at fault, since worn suspension parts can also cause a shake under braking. This listing is a single rotor, and the left and right front rotors are normally replaced together.
It is a direct-fit replacement on the front axle of the 2019-2023 Genesis G70 and the 2018-2021 Kia Stinger.
Fit and size
Build and materials
In the box: one front brake rotor. Both cars take two.
Interchange: 120.50040 · 125.50040 · 600-21040 · 51712-J5000
982549 · 982549FZN
This part cross-references / interchanges with the following part numbers:
Are these 2018-2021 Kia Stinger brake rotors for the front or the rear?
Front. The ADVICS R6F328U is a vented, direct-fit front brake rotor for the 2018-2021 Kia Stinger.
What size are these 2019-2023 Genesis G70 brake rotors?
The ADVICS R6F328U measures 320.0 mm (12.598 in) across, with a 69 mm center hole and a 114.3 mm (4.5 in) bolt circle for 5 lugs, for the front of the 2019-2023 Genesis G70.
Does the R6F328U rotor come with an ABS tone ring?
No. This front rotor does not include an ABS tone ring; the listing is the rotor alone.
How can I tell if this vented front rotor is wearing out?
A pulsing brake pedal, a grinding sound when braking, or deep grooves on the braking surface seen during a brake job can mean this front rotor is worn.
At what thickness should these ADVICS brake rotors be replaced?
This front rotor is 28.0 mm (1.102 in) thick when new and should be replaced once it wears to its 26.0 mm (1.024 in) discard thickness.
