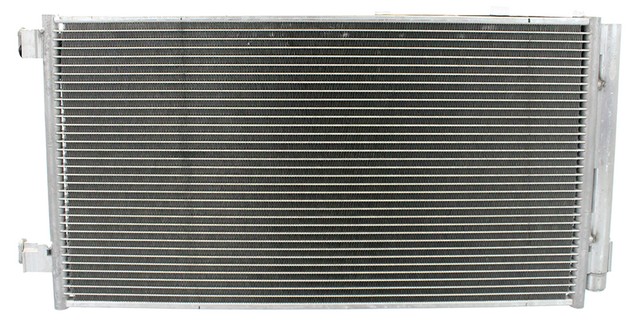

Agility Autoparts 7010093 A/C condenser for the 2018-2022 Jeep Compass and other vehicles cools hot refrigerant until it condenses back into liquid.
- Parallel flow core with mini-micro extruded tube technology for thermal performance
- Aluminum core, 0.625 in thick
- Receiver/drier included with the condenser
- Block connection fittings at both the inlet and the outlet
- Every condenser is 100% leak tested
Quick facts
- Part: Agility Autoparts 7010093 A/C condenser
- Fits: 2018-2022 Jeep Compass and other vehicles
- Material: Aluminum
- Condition: New
Warm air at the vents, oily residue on the condenser or bent, debris-packed fins can all mean a condenser is failing. Since a weak compressor or low refrigerant can also leave the air warm, look the condenser over with the engine off first, and leave leak testing to a shop.
Fits
This condenser is a direct-fit replacement for the 2018-2022 Jeep Compass, the 2015-2021 Jeep Renegade and the 2015-2021 Ram ProMaster City. A 2018-2022 Jeep Compass takes one condenser, and the part is certified to meet or exceed OE specifications. Driving a different model? Look up your year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core length: 24.250 in
- Core height: 13.750 in
- Core thickness: 0.625 in
- Inlet fitting: block connection
- Outlet fitting: block connection
Build and materials
- Core type: parallel flow
- Core material: aluminum
- Receiver/drier: included
- Condition: new
- Country of origin: China
In the box
One A/C condenser with receiver/drier.
Installation notes
- Ready to install right out of the box.
Interchange: 31-30093 · 31-4921 · 7-30045
30093 · 4921 · 68247204AA · 68273402AA · 68273402AB · 68285225AA · 30045 · AUC30045
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
30093, 4921, 68247204AA, 68273402AA, 68273402AB, 68285225AA, 30045, AUC30045, 31-30093, 31-4921, 7-30045
Frequently Asked Questions
Is this the right A/C condenser for a 2018-2022 Jeep Compass?
Yes. Agility Autoparts 7010093 fits the 2018-2022 Jeep Compass, and the vehicle takes one condenser. For another model, look in the "Vehicles it fits" section.
Does the Agility 7010093 condenser come with a receiver/drier?
Yes. The Agility 7010093 A/C condenser includes the receiver/drier, so the listing is one condenser with the receiver/drier.
What size is the core on this A/C condenser?
The aluminum parallel flow core is 24.250 in long, 13.750 in high and 0.625 in thick.
What kind of inlet and outlet fittings does this condenser have?
Both the inlet and the outlet use block connections.
Does the Agility 7010093 condenser replace OE number 68273402AA?
Yes. 68273402AA is one of the numbers that Agility 7010093 replaces, along with 68273402AB and 68285225AA.
