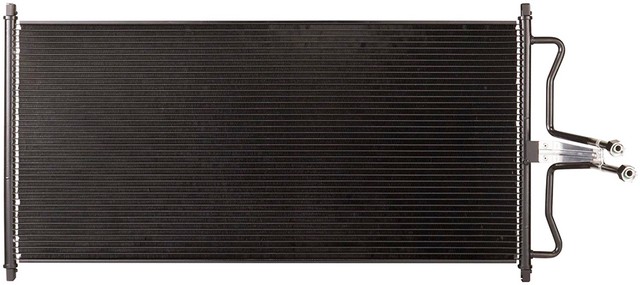

Agility Autoparts 7013092 A/C condenser for the 2004-2008 Ford F-150 and other vehicles cools hot, high-pressure refrigerant gas so it condenses back into a liquid. That lets the A/C system give up the heat it pulls from the cabin.
- Parallel-flow core built with mini-micro extruded tube technology
- Aluminum core, 34.625 in long, 16.875 in high and 0.875 in thick
- Inlet and outlet use # 8 female O-ring fittings
- Every condenser is 100% leak tested
Quick facts
- Part: Agility Autoparts 7013092 A/C condenser
- Fits: 2004-2008 Ford F-150 and other vehicles
- Material: Aluminum
- Condition: New
Weak cooling, oily residue on the condenser or bent, damaged fins can mean the condenser is leaking or has been hit. Before you replace it, rule out low refrigerant, a compressor fault and a cooling fan fault, because each of those can also leave the A/C blowing warm; a shop can test them.
Fits
This condenser is a drop-in fit for the 2004-2008 Ford F-150 and the 2006-2008 Lincoln Mark LT, and both trucks take a single condenser. It is certified to OE-level specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core length: 34.625 in
- Core height: 16.875 in
- Core thickness: 0.875 in
- Inlet fitting: # 8 female O-ring
- Outlet fitting: # 8 female O-ring
Build and materials
- Core type: Parallel flow
- Core material: Aluminum
- Condition: New
- Country of origin: China
Installation notes
- Comes ready to install right out of the box.
Interchange: 24-31116 · 31-3092 · 7-3092
P40386P · 3092 · AC3092 · 4L3419710AD · 4L3Z19712AA · 7L3Z19712A · AUC3092 · 80415 · 640151 · 1040386 · 1170
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
P40386P, 3092, AC3092, 4L3419710AD, 4L3Z19712AA, 7L3Z19712A, AUC3092, 80415, 24-31116, 640151, 31-3092, 7-3092, 1040386, 1170
Frequently Asked Questions
Is this the right A/C condenser for the 2004-2008 Ford F-150?
Yes. Agility Autoparts 7013092 is listed for the 2004-2008 Ford F-150, and the truck takes one condenser.
Is the same condenser listed for the 2006-2008 Lincoln Mark LT?
Yes. Agility 7013092 also fits the 2006-2008 Lincoln Mark LT, and that truck takes one.
What size fittings does this condenser have?
Both the inlet and the outlet are # 8 female O-ring fittings. The parallel-flow aluminum core is 34.625 in long, 16.875 in high and 0.875 in thick.
Can bent fins or oily residue on a condenser mean it needs replacing?
They can, if the fins are damaged or the residue comes from a leak. A shop can pinpoint the cause with leak testing.
Is the Agility 7013092 condenser leak tested?
Yes. Every Agility condenser is 100% leak tested, and this one comes ready to install out of the box.
