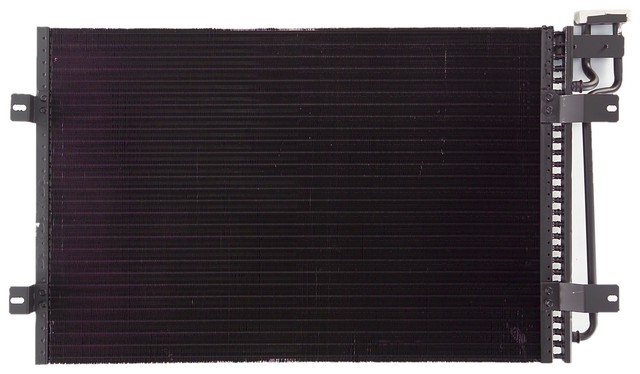

Agility 7013634 A/C condenser for the 1995-1997 Dodge B1500 and other vehicles removes heat from the A/C refrigerant so the system can cool the cabin. Hot refrigerant gas passes through its core and turns back to liquid.
- Parallel flow core built with mini-micro extruded tube technology for thermal performance
- Aluminum core material
- Block connection inlet and outlet fittings
- Each condenser is 100% leak tested
Quick facts
- Part: Agility 7013634 A/C condenser
- Fits: 1995-1997 Dodge B1500 and other vehicles
- Material: Aluminum core
- Condition: New
Weak cooling from the vents, or oily residue on the condenser where refrigerant has leaked, can mean the condenser is worn, though a weak compressor or a low refrigerant charge can also be behind poor cooling. Each vehicle takes one condenser.
Fits
As a drop-in A/C condenser for vehicles like the 1995-1997 Dodge B1500, the 1995-1997 Dodge B2500 and the 1995-1997 Dodge B3500, it is certified to meet or exceed OE specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core height: 18.125 in
- Core length: 28.875 in
- Core thickness: 0.875 in
- Inlet and outlet fittings: block connection
Build and materials
- Core type: parallel flow
- Core material: aluminum
- Condition: new
- Country of origin: China
Installation notes
- Arrives ready to install right out of the box for a drop-in fit.
Interchange: 15-62301 · 15-6559 · 24-30369 · 31-3634 · 7-3634
AC324 · P36340 · 3634 · AC3634 · 4163920 · CF1073 · 9925 · AUC3634 · 36320 · 36340 · 636340 · C3634 · 1026340 · 3024
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
15-62301, 15-6559, AC324, P36340, 3634, AC3634, 4163920, CF1073, 9925, AUC3634, 36320, 36340, 24-30369, 636340, 31-3634, C3634, 7-3634, 1026340, 3024
Frequently Asked Questions
Does the Agility 7013634 A/C condenser fit the 1995-1997 Dodge B2500?
Yes, Agility 7013634 fits the 1995-1997 Dodge B2500 and the 1995-1997 Dodge B3500. For any other year or model, find your own vehicle in the "Vehicles it fits" section on this page.
What size is the core on the Agility 7013634 condenser?
The Agility 7013634 core measures 28.875 in long, 18.125 in high and 0.875 in thick. It is a parallel flow design with an aluminum core.
Are the fittings on this parallel flow condenser block connections?
Yes. Both the inlet and the outlet on this condenser use a block connection fitting.
How can I tell if my A/C condenser is leaking?
With the engine off, look for oily residue on the condenser, and notice whether the vents blow weak cooling. A shop can leak-test the whole A/C system to find the source.
Does the Agility 7013634 condenser replace number AC3634?
Yes. AC3634 is one of the numbers this condenser replaces, along with 4163920 and CF1073. The full list is on the Interchange line.
