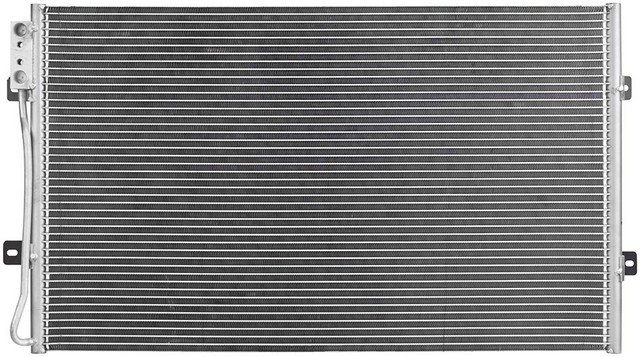

Agility Autoparts 7014934 A/C condenser for the 1998-2003 Dodge Ram 1500 Van and other vehicles releases heat from the A/C refrigerant so it can turn back into a liquid.
- Aluminum parallel-flow core built with mini-micro extruded tube technology
- Block connection fittings on both the inlet and the outlet
- Enhanced design features aimed at increased thermal performance
- 100% leak tested
Quick facts
- Part: Agility Autoparts 7014934 A/C condenser
- Fits: 1998-2003 Dodge Ram 1500 Van and other vehicles
- Material: Aluminum
- Condition: New
Weak cooling, oily residue on the condenser, or bent and clogged fins can mean the condenser has failed. Before you replace it, rule out low refrigerant, a worn compressor or a faulty cooling fan, since any of them can leave the cabin warm as well. A shop can test the A/C system if the cause is unclear.
Fits
This condenser is listed for a wide range of Dodge models, led by the 1998-2003 Dodge Ram 1500 Van, the 1998-2003 Dodge Ram 2500 Van and the 1998-2003 Dodge Ram 3500 Van. The 1998-2003 Dodge Ram 1500 Van takes one. Dodge vehicles not named here are covered in the "Vehicles it fits" section, so search it by your own year and model.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core length: 29.625 in
- Core height: 17.500 in
- Core thickness: 0.875 in
- Inlet fitting: block connection
- Outlet fitting: block connection
Build and materials
- Core type: parallel flow
- Core material: Aluminum
- Condition: New
- Country of origin: China
Installation notes
- Certified to OE specifications or better and ready to install out of the box for a drop-in fit.
Interchange: 31-4934 · 7-4934
AC353 · P40198P · 3008 · AC4934 · 55055471AB · 4934 · AUC4934 · 40198 · 640311 · 817353 · 1020198 · 3161
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
AC353, P40198P, 3008, AC4934, 55055471AB, 4934, AUC4934, 40198, 640311, 31-4934, 7-4934, 817353, 1020198, 3161
Frequently Asked Questions
Is the Agility Autoparts 7014934 condenser right for a 1998-2003 Dodge Ram 1500 Van?
Yes. Agility Autoparts 7014934 is listed for the 1998-2003 Dodge Ram 1500 Van, which takes one condenser.
What is the core of this A/C condenser made of, and how big is it?
The core is aluminum, a parallel-flow design built with mini-micro extruded tube technology. It measures 29.625 in long, 17.500 in high and 0.875 in thick.
Does this condenser have block connection fittings?
Yes. Both the inlet and the outlet fittings on Agility Autoparts 7014934 are block connections.
What signs can show a parallel-flow A/C condenser has failed?
Weaker cooling, oily residue on the condenser or bent, clogged fins can be signs. A shop can test the A/C system, since opening an A/C line is not a driveway check.
Does Agility Autoparts 7014934 interchange with 55055471AB?
Yes. 55055471AB is on the Interchange line for Agility Autoparts 7014934, so the two numbers cross-reference.
