Oil Pan for 1993-1997 Toyota Corolla & More - Agility 3310051

$68.99

Vehicles this part fits

    Part number: 3310051
    UPC: 887548385611
    Condition: New
    Weight: 9.06 LBS
    Item Package Quantity: 1
    $68.99
    Adding to cart… The item has been added

    Have questions?

    Agility Autoparts Engine Oil Pan P/N:3310051
    Agility Autoparts Engine Oil Pan P/N:3310051
    $68.99
    $68.99

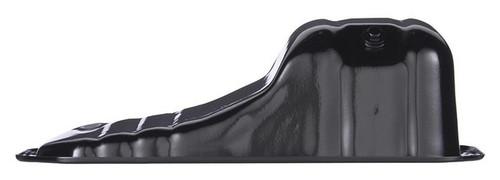

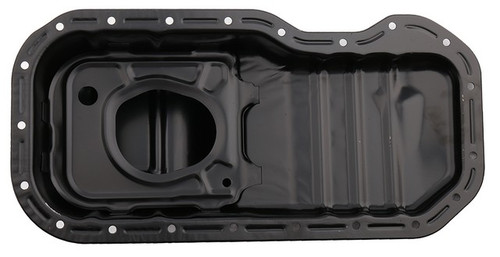

    Replace a leaking or damaged oil pan on the 1993-1997 Toyota Corolla 1.6L or 1993-1997 Geo Prizm 1.6L with the Agility Auto Parts Oil Pan 3310051, a direct-fit replacement for these L4-1.6L applications.

    The oil pan closes off the bottom of the engine and holds the oil the oil pump draws from. If your original pan is dented, rusted, leaking or has damaged drain threads, this steel pan replaces it. The listed applications use one pan.

    • Steel construction: made of steel.
    • Baffled: the pan includes a baffle, designed to help limit oil sloshing away from the pickup.
    • Drain plug included: ships with a drain plug. The drain thread size is M12 x 1-1/4.
    • Windage tray not included: this pan is supplied without a windage tray.
    • Built to OEM standards: Agility engineers its engine oil pans to match or surpass all OEM specifications.

    Agility is a North American company with distribution warehouses in Canada and the United States. Country of origin: China.

    Interchange: 264-309 · 311-58383B
    264309 · 31158383B · KTOP6A · TOP06A · 1210116100

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    KTOP6A, 264-309, 311-58383B, TOP06A, 1210116100

    Frequently Asked Questions

    What does an oil pan do?

    It closes off the bottom of the engine and holds the oil supply that the oil pump draws from. This Agility pan is steel and baffled to help limit oil slosh around the pickup.

    Is this the right 1997 Toyota Corolla 1.6L oil pan?

    Yes. The 1997 Toyota Corolla with the L4-1.6L engine is a listed application. Check the "Vehicles it fits" section to confirm your vehicle.

    Does the Agility 3310051 come with a drain plug?

    Yes, a drain plug is included, and the drain thread size is M12 x 1-1/4. A windage tray is not included.

    What are signs an oil pan may need replacing?

    Oil seeping from the pan, dents or punctures from road debris, rust damage or stripped drain threads can be signs. Confirm the source of any leak before replacing the pan.

    What should I know about an oil pan replacement?

    Drain the oil, remove the old pan and clean the mating surface. Follow the vehicle's service information for the sealing method and bolt torque, then refill with the specified oil.
