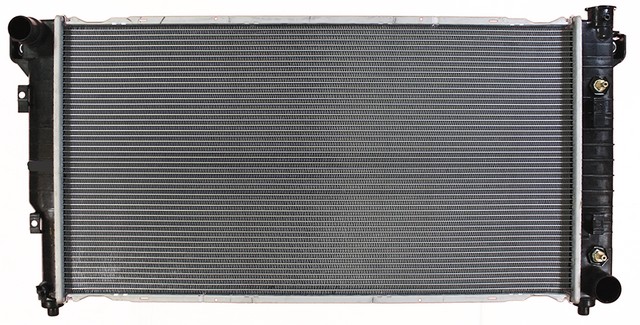

Agility 8011555 radiator for the 1994-2002 Dodge Ram 2500 V10 8.0L and other vehicles sheds heat from the engine coolant so the engine stays at operating temperature.
- Plastic tank aluminum construction with a single-row core
- Every radiator is 100% leak tested
- Ready to install out of the box
- Step-neck inlet connection, with a 2.000-inch outlet diameter
Quick facts
- Part: Agility 8011555 radiator
- Fits: 1994-2002 Dodge Ram 2500 V10 8.0L and other vehicles
- Condition: New
Coolant leaks at the tank or core, a temperature gauge that climbs, or coolant residue on the core can mean a radiator is failing. Before you replace the radiator, rule out a sticking thermostat, a weak water pump or a leaking hose, since each of those can also run the engine hot. If you check the coolant level, do it only with the engine cool.
Fits
This radiator fits the 1994-2002 Dodge Ram 2500 V10 8.0L and the 1994-2002 Dodge Ram 3500 V10 8.0L. The 1994-2002 Dodge Ram 2500 V10 8.0L takes one, and this listing is one radiator.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core width: 36.000 in
- Core height: 19.375 in
- Core thickness: 2.250 in
- Outlet diameter: 2.000 in
- Inlet connection: Step-Neck Connection 1-3/4 - 2
- Transmission oil cooler length: 12.000 in
Build and materials
- Construction: Plastic Tank Aluminum
- Core rows: 1
- Condition: New
- Country of origin: China
Interchange: 41-1555
1555 · CRS1554 · CRS1555 · 52006478 · 52028057AF · 52029176AB · 52029176AC · 52030106 · 1554 · CU1554 · CU1555 · 732086 · 432462 · 432463
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
1555, CRS1554, CRS1555, 52006478, 52028057AF, 52029176AB, 52029176AC, 52030106, 1554, 41-1555, CU1554, CU1555, 732086, 432462, 432463
Frequently Asked Questions
Is this a radiator for the 1994-2002 Dodge Ram 2500 V10 8.0L?
Yes. Agility 8011555 is listed for the 1994-2002 Dodge Ram 2500 V10 8.0L, and that truck takes one radiator.
Is this the radiator for the 1994-2002 Dodge Ram 3500 V10 8.0L?
Yes. Agility 8011555 is also listed for the 1994-2002 Dodge Ram 3500 V10 8.0L, which takes one radiator.
What are the core dimensions of this radiator?
The single-row core is 36.000 inches wide, 19.375 inches high and 2.250 inches thick. The outlet diameter is 2.000 inches.
Is each Agility radiator tested for leaks?
Yes. Every radiator is 100% leak tested and comes ready to install out of the box.
Does Agility 8011555 replace radiator number 52029176AB?
Yes. 52029176AB is on this part's interchange list, along with 41-1555 and CU1555.
