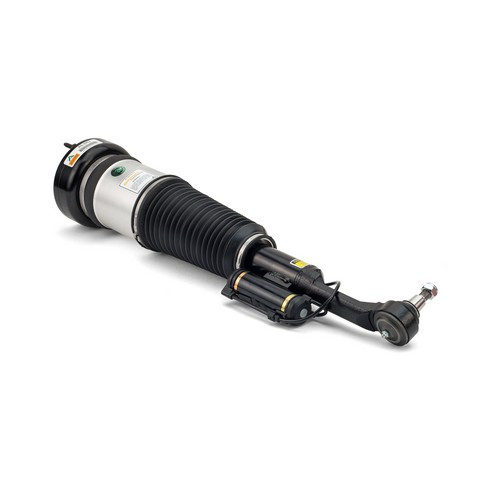

Arnott's new, not remanufactured, air strut for the front right side of the 07-13 Mercedes-Benz S-Class(W221) and 07-14 CL-Class(W216), both with Airmatic and 4MATIC, AS-2852, features a custom-made and tuned twin-tube shock absorber designed to provide a responsive yet comfortable ride. The Arnott strut is built with a new ContiTech air bladder, bump stop, connector, air line fitting and heavy duty crimping rings. The Arnott design is not only more efficient, it's also much more affordable! Arnott recommends replacing both O.E. front struts at the same time.
Resister Eliminates AIRMATIC Dashboard Warning Lights
Pre-Assembled For Easy Installation
Replace in Pairs
New Air Suspension Strut
| Name | Value |
|---|---|
| Dust Shield Material | N/A |
| Lower Mount Type | Bolt |
| Shock Absorber Rod End Measuring Point | Shoulder of Stud |
| Upper Mount Type | Stud |
| Upper Mounting Isolator Included | Yes |
| Adjustable Damping | No |
| Gas Charged | Yes |
| Hazardous Material | No |
| Minimum Order Quantity | 1 |
| Country of Origin | United States |
| Weight - Each (Gross Pounds) | 9.6591 |
| Weight - Each (Gross Pounds) | 21.2500 |
| Height - Each (Inch) | 8.0000 |
| Height - Each (cm) | 20.3200 |
| Length - Each (Inch) | 34.2500 |
| Length - Each (cm) | 86.9950 |
| Width - Each (Inch) | 8.0000 |
| Width - Each (cm) | 20.3200 |
| Short Description | Suspension Strut |
| Mounting Hardware Included | Yes |
| Contents | Air Shock Assembly |
| Air Spring System Type | 616 |
| Compressor Amperage (Ampere) | 490 |
| Connector Gender | Yes |
| Grade Type | No |
| Grade Type | Standard |
| Maximum Pressure (Pounds per Square Inch) | 126 |
| Terminal Gender | Yes |
| Mounting Bracket Included | Rubber |
| Airflow Rate (Cubic Feet per Minute) | Yes |
| Inlet Port Diameter (Millimeter) | Black |
| Heavy Duty Crimping Rings | Yes |
| Springs Included | Yes |
| Spring Rate Type | Progressive |
| Spring Seat Included | No |
| Air Adjustable | Yes |
| Body End Measuring Point | Center Eye |
| Shock/strut Design | Twin-tube |
| Internal Construction Type | Twin-tube |
| Item Level GTIN | 00815710015196 |
| Air Bladder | Yes |
| Quantity Per Application | 1 |
| Bearing Plate Included | No |
| Internal Damper Type | Hydraulic |
| Lower Mounting Isolator Included | No |
| Progressive Spring Rate | Progressive |
| Shock Spring Assisted | Yes |
| Spring Isolators Included | Yes |
| Coil Over Springs Included | N/A |
| Make | Model | Year | Engine | Type |
|---|---|---|---|---|
| MERCEDES-BENZ | CL550 | 14-09 | All | Air Suspension Strut - FRONT RIGHT |
| MERCEDES-BENZ | S350 | 13-12 | All | Air Suspension Strut - FRONT RIGHT |
| MERCEDES-BENZ | S450 | 11-08 | All | Air Suspension Strut - FRONT RIGHT |
| MERCEDES-BENZ | S500 | 2013 | All | Air Suspension Strut - FRONT RIGHT |
| MERCEDES-BENZ | S550 | 13-07 | All | Air Suspension Strut - FRONT RIGHT |
