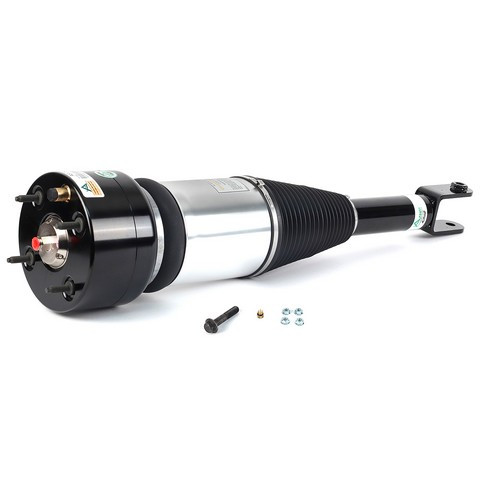

Arnott's completely new, not remanufactured, air strut for the front of the Jaguar XJ series, AS-2888, features a custom-made and tuned premium monotube shock absorber designed to provide a responsive yet comfortable ride. The Arnott-designed strut eliminates many of the common high wear weaknesses of the OE strut, such as the leaky upper seal, noisy upper mount, and the weak lower rubber seal. The Arnott strut is built with a new ContiTech air bladder, heavy duty crimping rings, O-Rings and new, O.E.-inspired, dampening coil. The Arnott design is not only more efficient, it's also much more affordable! This strut fits Jaguar vehicles with sport or comfort suspension. Arnott recommends replacing both Jaguar XJ O.E. front struts at the same time.
Engineered in the USA
Replace in Pairs
Custom-designed shock absorber
CNC-Machined Aluminum Parts
Valved To Ride Like OEM Suspension
Anodized Aluminum Finish
Pre-Assembled For Easy Installation
New Air Suspension Strut
| Name | Value |
|---|---|
| Dust Shield Material | N/A |

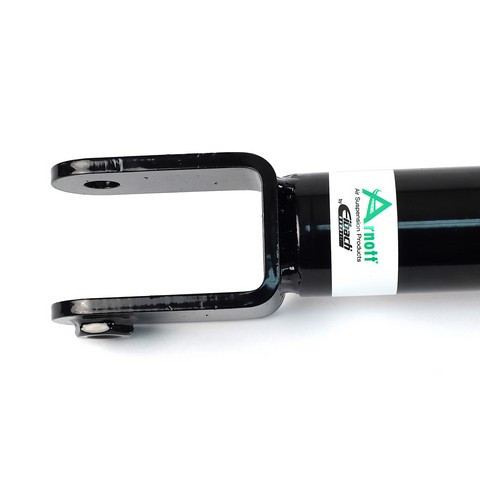

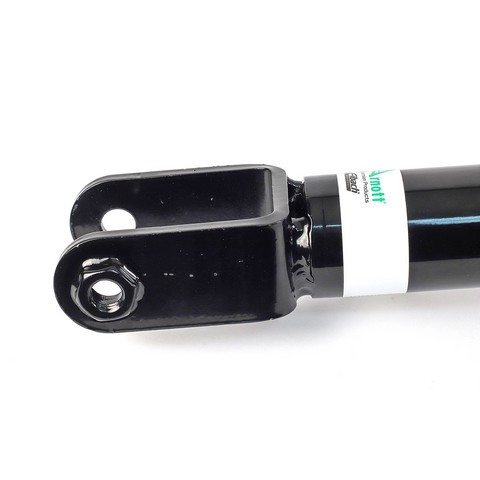

| Lower Mount Type | Clevis |
| Shock Absorber Rod End Measuring Point | Shoulder of Stud |
| Upper Mount Type | Stud |
| Upper Mounting Isolator Included | Yes |
| Adjustable Damping | No |
| Gas Charged | Yes |
| Hazardous Material | No |
| Minimum Order Quantity | 1 |
| Country of Origin | United States |
| Weight - Each (Gross Pounds) | 15.9990 |
| Weight - Each (Gross Pounds) | 7.2723 |
| Height - Each (Inch) | 7.1250 |
| Height - Each (cm) | 18.0975 |
| Length - Each (Inch) | 29.2500 |
| Length - Each (cm) | 74.2950 |
| Width - Each (Inch) | 7.1250 |
| Width - Each (cm) | 18.0975 |
| Short Description | Suspension Strut |
| Mounting Hardware Included | Yes |
| Contents | Air Shock Assembly; Mounting Hardware |
| Air Spring System Type | 626 |
| Compressor Amperage (Ampere) | 503.3 |
| Connector Gender | Yes |
| Grade Type | Standard |
| Grade Type | No |
| Maximum Pressure (Pounds per Square Inch) | 122.7 |
| Terminal Gender | Yes |
| Mounting Bracket Included | Rubber |
| Airflow Rate (Cubic Feet per Minute) | Yes |
| Inlet Port Diameter (Millimeter) | Black |
| Heavy Duty Crimping Rings | Yes |
| Springs Included | Yes |
| Spring Rate Type | Progressive |
| Spring Seat Included | No |
| Air Adjustable | Yes |
| Body End Measuring Point | Center Eye |
| Shock/strut Design | Monotube |
| Internal Construction Type | Monotube |
| Item Level GTIN | 00815710014670 |
| Air Bladder | Yes |
| Quantity Per Application | 2 |
| Bearing Plate Included | No |
| Internal Damper Type | Hydraulic |
| Lower Mounting Isolator Included | No |
| Progressive Spring Rate | Progressive |
| Shock Spring Assisted | Yes |
| Spring Isolators Included | Yes |
| Coil Over Springs Included | N/A |
| Make | Model | Year | Engine | Type |
|---|---|---|---|---|
| JAGUAR | SUPER V8 | 09-05 | All | Air Suspension Strut - FRONT |
| JAGUAR | VANDEN PLAS | 09-04 | All | Air Suspension Strut - FRONT |
| JAGUAR | XJ8 | 09-04 | All | Air Suspension Strut - FRONT |
| JAGUAR | XJR | 09-04 | All | Air Suspension Strut - FRONT |
