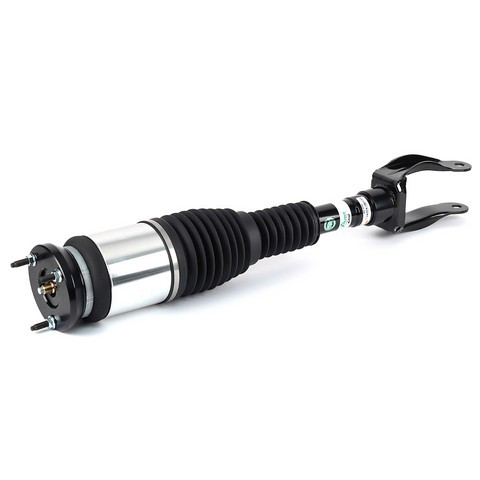

Arnott Industries AS-3155 front right air suspension strut for the 2019 Mercedes-Benz GLS500 and other vehicles supports the front right corner on air and damps wheel movement. The strut is a complete assembly built with OE-quality components.
- Passive Eibach monotube damper, custom tuned for ride comfort and handling
- Cross-axis, multi-ply Continental ContiTech air sleeve for strength and extended service life
- Steel top mount and clevis, O-rings, polyurethane bump stop, protective can, airline fitting and check valve
- Built with Tier 1 components throughout the assembly
Quick facts
- Part: Arnott Industries AS-3155 air suspension strut
- Fits: 2019 Mercedes-Benz GLS500 and other vehicles
- Position: Front right
- Condition: New
A sagging corner, air leaking down or a rough, bouncy ride can mean the strut is worn. A leaking airline, a tired air compressor or a ride height sensor fault can be behind these signs too, so track down the cause before you order.
Fits
This air suspension strut is made for the 2019 Mercedes-Benz GLS500, the 2017-2019 Mercedes-Benz GLS450 and the 2017-2019 Mercedes-Benz GLS550 with AIRMATIC and without ADS. This listing is one strut for the front right; the front left is a separate part, and for best results the two are replaced in pairs. If your Mercedes-Benz is not named here, find its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: front right
- Quantity per vehicle: 1
- Upper mount type: stud
- Lower mount type: clevis
- Body end measuring point: center eye
- Shock absorber rod end measuring point: shoulder of stud
Build and materials
- Internal damper type: hydraulic
- Spring rate type: progressive
- Air adjustable: yes
- Compression: not adjustable
- Condition: new
- Country of origin: United States
In the box
One air suspension strut with mounting hardware, a bearing plate, an upper mounting isolator, spring isolators, a boot and heavy-duty crimping rings. The spring seat and the lower mounting isolator are not included.
Installation notes
- Detailed installation instructions are available for this strut.
Interchange: 44-291044
1663202613 · 1663205066 · 166320506680 · 1663207413
This part cross-references / interchanges with the following part numbers:
1663202613, 1663205066, 166320506680, 1663207413, 44-291044
Frequently Asked Questions
Does the Arnott AS-3155 strut fit the 2017-2019 Mercedes-Benz GLS450?
Yes. Arnott Industries AS-3155 is a front right air suspension strut for the 2017-2019 Mercedes-Benz GLS450 with AIRMATIC and without ADS. For other years and models, use the "Vehicles it fits" section.
What hardware comes with the Arnott AS-3155 air suspension strut?
Besides the strut itself, the Arnott Industries AS-3155 has mounting hardware, a bearing plate, an upper mounting isolator, spring isolators, a boot and heavy-duty crimping rings. The spring seat and lower mounting isolator are left out.
Is the damper on this front right air suspension strut adjustable?
No, compression is not adjustable on this air suspension strut. The damper is a passive Eibach monotube unit, though the strut itself is air adjustable.
How can I tell if this air suspension strut is going bad?
A corner that sags, a rough or bouncy ride, or a warning light can mean the strut is worn. If the cause is unclear, a shop can test the air system and the strut.
Does the Arnott AS-3155 strut interchange with 1663202613?
Yes. This strut is cross-referenced to 1663202613, as well as 44-291044, 1663205066, 166320506680 and 1663207413.
