Power Steering Pump for 2003-2008 Toyota Corolla & More - Atlantic Automotive Engineering 5588N

$206.99

Vehicles this part fits

    Part number: 5588N
    UPC: 888544045356
    Condition: New
    Weight: 5.00 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $206.99
    Adding to cart… The item has been added

    Have questions?

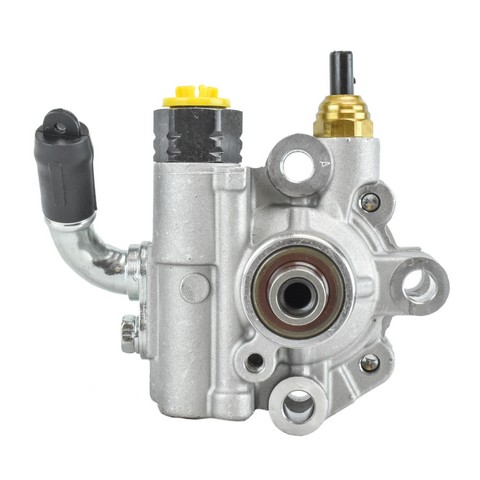

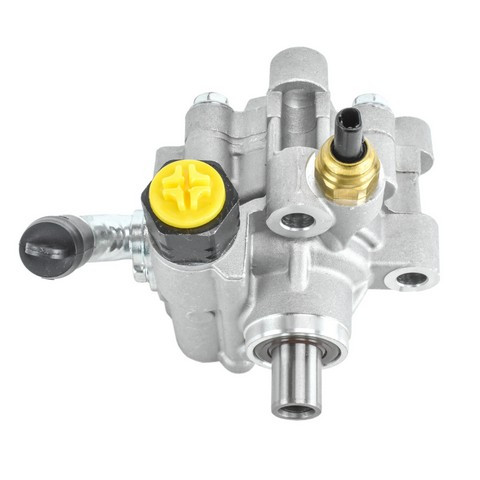

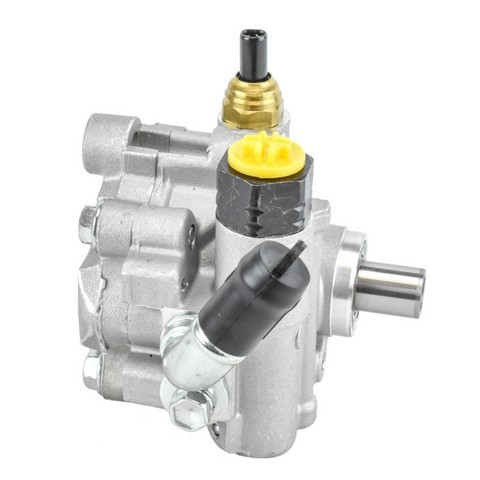

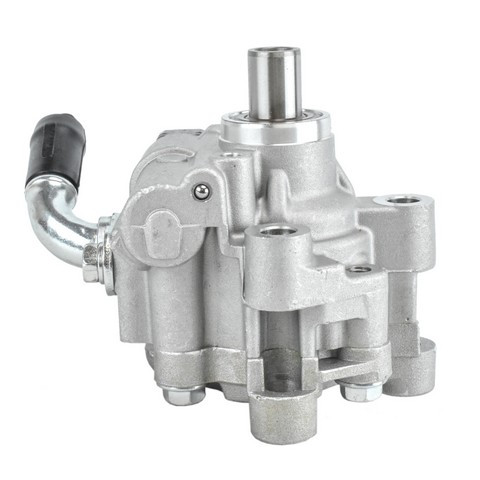

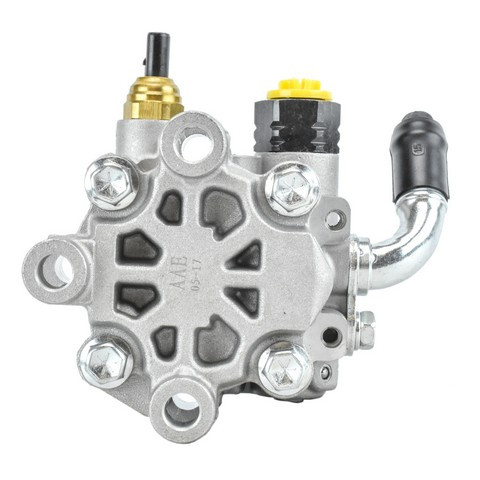

    Atlantic Automotive Engineering Power Steering Pump P/N:5588N
    Atlantic Automotive Engineering Power Steering Pump P/N:5588N
    $206.99
    $206.99

    Atlantic Automotive Engineering 5588N power steering pump for the 2003-2008 Toyota Corolla and other vehicles supplies the hydraulic pressure that powers the steering. It replaces a failed unit and is built with OE quality components, engineered for OE-level performance, fit and function.

    • Upgraded shaft is heat treated to prevent premature failure
    • Each unit is 100% hydraulically tested under load
    • Thorough inspection and testing of every unit before shipment
    • Aluminum housing with a press-on pulley attachment

    Quick facts

    • Part: Atlantic Automotive Engineering 5588N power steering pump
    • Fits: 2003-2008 Toyota Corolla and other vehicles
    • Material: Aluminum housing
    • Condition: New

    A whine or groan when turning, steering that feels heavy, or fluid around the pump can mean the pump is wearing out. Before replacing it, look the reservoir, hoses and fittings over with the engine off for leaks, cracks or debris, since the pump may not be the source of the problem.

    Fits

    As a power steering pump replacement for the 2003-2008 Toyota Corolla, the 2003-2008 Toyota Matrix and the 2003-2008 Pontiac Vibe, this hydraulic unit takes one per vehicle.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Inlet diameter: 16.0 mm
    • Outlet diameter: 16.0 mm
    • Hose port type: hose barb
    • Inlet attachment: clamp-on
    • Outlet attachment: threaded
    • Pulley attachment: press-on

    Build and materials

    • Type: hydraulic
    • Housing material: aluminum
    • Remote reservoir: yes
    • Grade: standard replacement
    • Condition: new
    • Country of origin: China

    In the box

    One power steering pump and one return pipe adapter. The pulley, reservoir, reservoir cap, filter and mounting hardware are not included, so plan on new mounting hardware rather than reusing the old.

    Installation notes

    • Flush and fill the steering system with an OE approved power steering fluid.
    • Replacing the steering fluid reservoir along with the pump is highly recommended, because a clogged reservoir can starve the new pump.

    Interchange: 88970127 · 4431002101 · 4431020830

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    88970127, 4431002101, 4431020830

    Frequently Asked Questions

    Is the 5588N a power steering pump for the 2003-2008 Toyota Corolla?

    Yes. The Atlantic Automotive Engineering 5588N fits the 2003-2008 Toyota Corolla and takes one per car. If your car is another model, look for it in the "Vehicles it fits" section of this page.

    Does the 5588N work as a power steering pump for the 2003-2008 Toyota Matrix?

    Yes. The Atlantic Automotive Engineering 5588N is listed for the 2003-2008 Toyota Matrix, and one pump is needed per vehicle.

    What size are the ports on this power steering pump?

    The inlet and outlet are both 16.0 mm. The hose port type is hose barb, with a clamp-on inlet and a threaded outlet.

    Does this power steering pump come with the pulley and reservoir?

    No. The pulley, reservoir, reservoir cap, filter and mounting hardware are not included. The box holds the pump and a return pipe adapter.

    Why replace the reservoir when installing the 5588N?

    A clogged reservoir can starve the replacement pump, so replacing the steering fluid reservoir along with it is highly recommended. Flush and fill the system with an OE approved power steering fluid.
