Power Steering Pump for 2009-2013 Subaru Forester & More - Atlantic Automotive Engineering 5618N

$315.99

Vehicles this part fits

    Part number: 5618N
    UPC: 888544043154
    Condition: New
    Weight: 5.00 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $315.99
    Adding to cart… The item has been added

    Have questions?

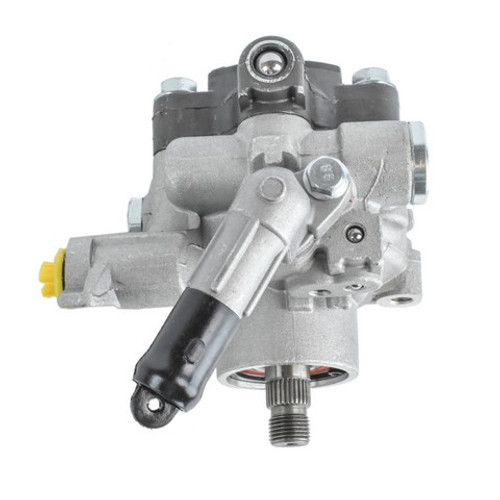

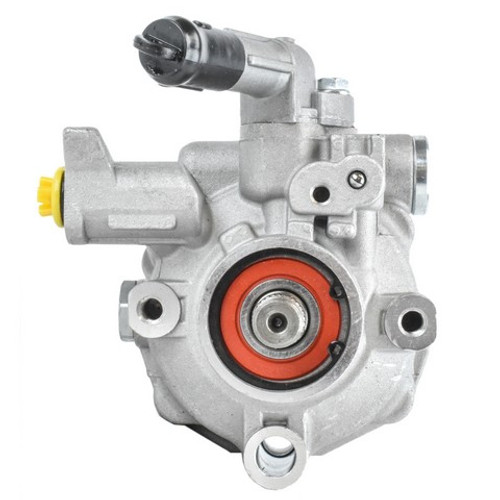

    Atlantic Automotive Engineering Power Steering Pump P/N:5618N
    Atlantic Automotive Engineering Power Steering Pump P/N:5618N
    $315.99
    $315.99

    Atlantic Automotive Engineering 5618N power steering pump for the 2009-2013 Subaru Forester and other vehicles builds the hydraulic pressure that assists steering. This new hydraulic unit is a direct replacement for a failed pump and is built with OE quality components.

    • Each pump is 100% hydraulically tested under load in the USA
    • Upgraded shaft is heat treated to prevent premature failure
    • Aluminum housing
    • Hose barb port type with a clamp-on inlet and a banjo outlet

    Quick facts

    • Part: Atlantic Automotive Engineering 5618N power steering pump
    • Fits: 2009-2013 Subaru Forester and other vehicles
    • Material: Aluminum housing
    • Condition: New

    A whining or groaning noise when turning, heavy steering or fluid around the pump can be signs of a worn pump. These signs alone do not prove the pump is at fault; a leaking hose can cause them too.

    Fits

    It is a replacement power steering pump for the 2009-2013 Subaru Forester, and it also fits the 2008-2014 Subaru Impreza and the 2005-2009 Subaru Outback, with one pump per vehicle.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Inlet diameter: 16.0 mm
    • Outlet diameter: 14.0 mm
    • Inlet attachment: clamp-on
    • Outlet attachment: banjo
    • Hose port type: hose barb
    • Pulley attachment: bolt-on

    Build and materials

    • Type: hydraulic
    • Housing material: aluminum
    • Remote reservoir: yes
    • Grade: standard replacement
    • Condition: new
    • Country of origin: China

    In the box

    One power steering pump and one return pipe adapter. The pulley, reservoir, reservoir cap, filter and mounting hardware are not included, so plan on new mounting bolts rather than reusing old ones.

    Installation notes

    • Flush and fill the steering system with an OE approved power steering fluid to protect the pump's life and operation.
    • Replace the steering fluid reservoir along with the pump; a clogged reservoir can starve the new pump.

    Interchange: 34430AG03A · 34430AG03B · 34430AG041 · 34430AG0419L · 34430AG050 · 34430AG051 · 34430FG000 · 34430FG0009L

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    34430AG03A, 34430AG03B, 34430AG041, 34430AG0419L, 34430AG050, 34430AG051, 34430FG000, 34430FG0009L

    Frequently Asked Questions

    Does the 5618N work as a 2010 Subaru Forester power steering pump (2009-2013 fitment)?

    Yes. Atlantic Automotive Engineering 5618N fits the 2009-2013 Subaru Forester, so a 2010 model is covered. For another Subaru, look up your car in the "Vehicles it fits" section.

    Does the Atlantic Automotive Engineering 5618N come with a pulley or reservoir?

    No. The 5618N includes a return pipe adapter. The pulley, reservoir, reservoir cap, filter and mounting hardware are not included.

    What size are the inlet and outlet on this power steering pump?

    The inlet is 16.0 mm with a clamp-on attachment, and the outlet is 14.0 mm with a banjo attachment. The port type is hose barb.

    Should I replace the reservoir when installing this power steering pump?

    Yes, replacing the reservoir is highly recommended, since a clogged one can starve the new pump. The steering system should also be flushed and filled with an OE approved power steering fluid.

    Can a whine when turning the wheel mean this power steering pump is wearing out?

    It can. A whining or groaning sound, heavy steering or fluid around the pump are common signs of a worn pump, and a shop can test the pump to confirm.
