Auto Trans Flexplate for 1977-1985 Chevrolet Impala & More - ATP Z-114

$57.99

Vehicles this part fits

    Part number: Z-114
    UPC: 740993022923
    Condition: New
    Weight: 5.00 LBS
    Item Package Quantity: 1
    $57.99
    Adding to cart… The item has been added

    Have questions?

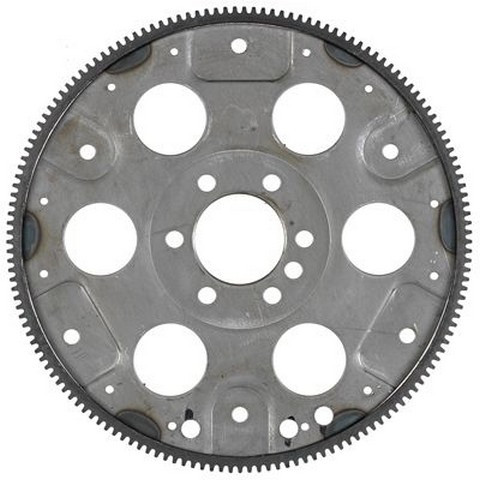

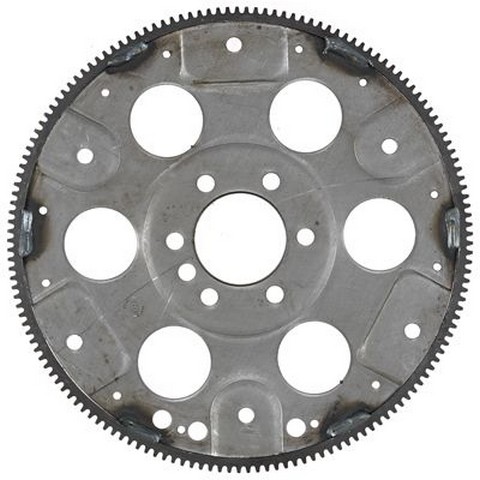

    ATP Automatic Transmission Flexplate P/N:Z-114
    ATP Automatic Transmission Flexplate P/N:Z-114
    $57.99
    $57.99

    ATP Z-114 auto trans flexplate for the 1977-1985 Chevrolet Impala and other vehicles connects the engine to the automatic transmission. It also allows for expansion of the torque converter as engine RPM increases.

    • Made of steel, with bolt holes for the torque converter and teeth for the starter
    • Ring gear with 153 teeth
    • Correct bolt hole spacing and ring gear teeth for long life and durability
    • For internally balanced engines with a 2 piece crank seal

    Quick facts

    • Part: ATP Z-114 auto trans flexplate
    • Fits: the 1977-1985 Chevrolet Impala and other vehicles

    Constant expansion and contraction over time can crack or shear a flexplate, and a damaged one cannot be repaired, only replaced. Cracks, worn starter teeth or a grinding noise at start-up can mean it is due. These signs alone don't prove the flexplate is at fault; a worn starter is another common cause.

    Fits

    This flexplate is listed for a wide range of Chevrolet, Buick, GMC, Oldsmobile and Pontiac models, including the 1978-1983 Chevrolet Malibu and the 1972-1985 Chevrolet Camaro, and each takes one. If your car isn't named here, look it up in the "Vehicles it fits" section.

    Specifications

    • Quantity per vehicle: 1
    • Diameter: 327.025 mm
    • Ring gear teeth: 153
    • Engine: internally balanced, with 2 piece crank seal
    • Country of origin: Mexico

    Interchange: AA-G103 · AA-G111 · FRA-112
    FW95854 · G103 · G111 · FA44 · FA44HD · XF23 · 33603 · GM103 · 4326 · 471529 · 471591 · 409452 · 6005021 · FY23 · 4161008 · V516

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    FW95854, G103, G111, FA44, FA44HD, XF23, 33603, GM103, 4326, 471529, 471591, 409452, AA-G103, AA-G111, 6005021, FY23, FRA112, FRA-112, 4161008, V516

    Frequently Asked Questions

    Does the ATP Z-114 auto trans flexplate fit the 1978-1983 Chevrolet Malibu?

    Yes, the ATP Z-114 is listed for the 1978-1983 Chevrolet Malibu, which takes one; for other cars, use the "Vehicles it fits" section.

    How many teeth does the ATP Z-114 flexplate have?

    The ATP Z-114 ring gear has 153 teeth, and the plate measures 327.025 mm in diameter.

    Is this flexplate made for an internally balanced engine?

    Yes. This auto trans flexplate is listed for an internally balanced engine with a 2 piece crank seal.

    Can a cracked flexplate be repaired?

    No. A cracked or sheared flexplate cannot be repaired and must be replaced, and constant expansion and contraction over time can cause the cracking.

    Is the ATP Z-114 interchangeable with flexplate number FA44?

    Yes. FA44 is one of the numbers ATP Z-114 replaces, and the rest are on the Interchange line.
