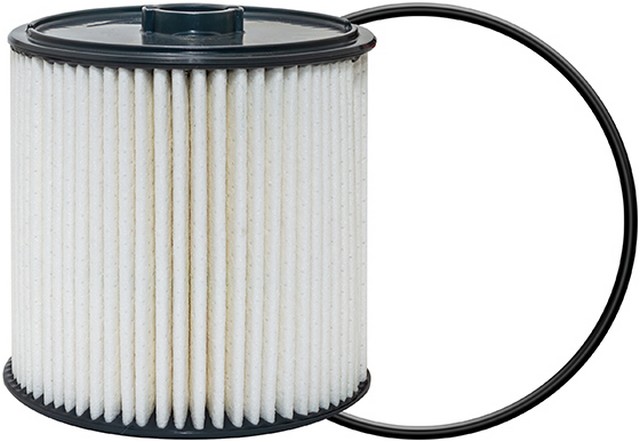

Keep clean, water-free diesel flowing to the injection system with the Baldwin Fuel/Water Separator Filter PF46152. This fuel/water separator element strains contaminants and helps separate water from the fuel before it reaches the pump and injectors. It drops in as a direct-fit replacement for the 2019-2024 RAM 2500, 3500 and 4500 [L6-6.7L], the 2019-2022 and 2024 RAM 5500 [L6-6.7L], the 2020-2022 RAM 1500 [V6-3.0L], the 2020-2023 Jeep Wrangler [V6-3.0L] and the 2022 Jeep Gladiator [V6-3.0L].
- Fuel/Water Separator Element: filters fuel and separates water to help protect downstream injection components.
- O-rings: two attached and one furnished for sealing at installation.
- Dimensions: outside diameter 4 1/32 in (102.4 mm), height 4 7/32 in (107.2 mm), inside diameters 1 3/16 in (30.5 mm) and 21/32 in (16.8 mm).
- Country of origin: United States.
If a clogged or water-laden separator element is the cause of hard starting, loss of power, or a water-in-fuel warning, this element replaces it. Service it per the vehicle's maintenance interval and drain the separator bowl as directed.
Interchange: 1BP00846AA · 96878 · L9768F · 68436631AA · P584293 · XF11883 · FS20378 · 56LG29 · GFI50505MB · FD9023 · 300579 · DF99569 · F51542 · W4120 · 56088 · SPTD99569 · WF10579 · Manufacturer part number PF46152.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
PF46152, 1BP00846AA, 96878, L9768F, 68436631AA, P584293, XF11883, FS20378, 56LG29, GFI50505MB, FD9023, 300579, DF99569, F51542, W4120, 56088, SPTD99569, WF10579
Frequently Asked Questions
What does this filter do?
It is a fuel/water separator element that strains contaminants from diesel fuel and helps separate water from the fuel before it reaches the pump and injectors.
Which vehicles does the PF46152 fit?
It fits the 2019-2024 RAM 2500/3500/4500 and 2019-2022 and 2024 RAM 5500 [L6-6.7L], 2020-2022 RAM 1500, 2020-2023 Jeep Wrangler, and 2022 Jeep Gladiator [V6-3.0L]. See the "Vehicles it fits" section.
Are O-rings included?
Yes. The element comes with two attached O-rings plus one furnished O-ring for sealing at installation.
What size is the element?
Outside diameter is 4 1/32 in (102.4 mm), height is 4 7/32 in (107.2 mm), and the inside diameters are 1 3/16 in (30.5 mm) and 21/32 in (16.8 mm).
What numbers does this replace?
Interchanges include 68436631AA, 1BP00846AA, 96878, L9768F, P584293, XF11883, FS20378, 56LG29, GFI50505MB, FD9023, 300579, DF99569, F51542, W4120, 56088, SPTD99569 and WF10579.
