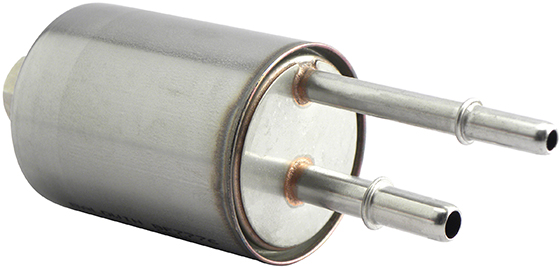

Baldwin BF7776 fuel filter for the 2005-2010 Cadillac STS V8 4.6L, the 2005-2011 STS V6 3.6L, the 2006-2008 STS V8 4.4L and other vehicles traps dirt in the fuel before it reaches the engine. It is an in-line filter that goes into the fuel line.
- In-line fuel filter in a metal housing
- M16 x 1.5 inlet connection
- 5/16 inch universal return line included
Quick facts
- Part: Baldwin BF7776 fuel filter
- Fits: the 2005-2010 Cadillac STS V8 4.6L, the 2005-2011 STS V6 3.6L, the 2006-2008 STS V8 4.4L and other vehicles
- Condition: New
A clogged fuel filter can show up as hard starting, hesitation under load or a loss of power. A weak fuel pump, a failing injector or a pinched fuel line can be behind the same signs, so find the cause before buying a new filter. Because it is a fuel part, a shop can handle the work if you are unsure.
Fits
The same filter fits the 2004-2005 Cadillac CTS V8 5.7L, the 2004-2010 CTS V6 3.6L, the 2005-2007 CTS V6 2.8L, the 2006-2007 CTS V8 6.0L and the 2004-2009 Cadillac SRX V6 3.6L or V8 4.6L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside diameter: 54.0 mm (2 1/8 in)
- Length: 158.8 mm (6 1/4 in)
- Inlet: M16 x 1.5
- Outlet: 3/8
Build and materials
- Type: in-line
- Housing: metal
- Return line: 5/16 inch universal
- Condition: New
- Country of origin: Taiwan
In the box
One fuel filter with a 5/16 inch universal return line. The fitment calls for one filter per vehicle, so this listing covers a single vehicle.
Interchange: GMC 25763176 · ACDelco GF897 · ADA102312 · 86889 · G6897 · FG5201 · 4EPJ4 · GF368 · MF1103 · 3889 · SF31310 · 73889 · PF5618 · F65618 · F56118 · 33889 · 533889
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
GF897, BF7776, ADA102312, 86889, G6897, FG5201, 25763176, 4EPJ4, GF368, MF1103, 3889, SF31310, 73889, PF5618, F65618, F56118, 33889, 533889
Frequently Asked Questions
Does Baldwin BF7776 work as a Cadillac CTS fuel filter for the 2006-2007 model with the V8 6.0L engine?
Yes. Baldwin BF7776 fits the 2006-2007 Cadillac CTS V8 6.0L, and the fitment calls for one filter.
Can I use this as a 2009 Cadillac CTS fuel filter replacement with the V6 3.6L?
Yes. Baldwin BF7776 fits the 2004-2010 Cadillac CTS V6 3.6L, a range that includes 2009.
Does this Baldwin Filters fuel filter come with a return line?
Yes. Baldwin BF7776 comes with a 5/16 inch universal return line. This listing is one filter.
What are the inlet and outlet sizes on this fuel filter?
The inlet is M16 x 1.5 and the outlet is 3/8. The housing measures 54.0 mm (2 1/8 in) across and 158.8 mm (6 1/4 in) long.
Does Baldwin BF7776 replace ACDelco GF897?
Yes. ACDelco GF897 is one of the numbers Baldwin BF7776 replaces, along with GMC 25763176.
