Remanufactured Rear Left Brake Caliper for 2013-2022 Ford F-250 Super Duty & More - Raybestos FRC12596

$148.99

Vehicles this part fits

    Part number: FRC12596
    UPC: 887213106749
    Condition: Refurbished
    Weight: 9.46 LBS
    Item Package Quantity: 1
    $148.99
    Adding to cart… The item has been added

    Have questions?

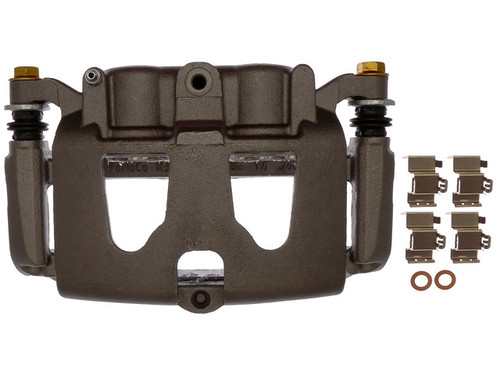

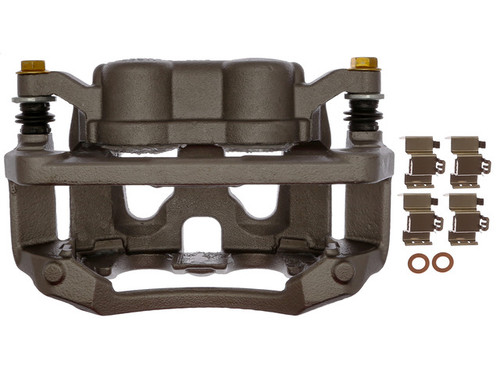

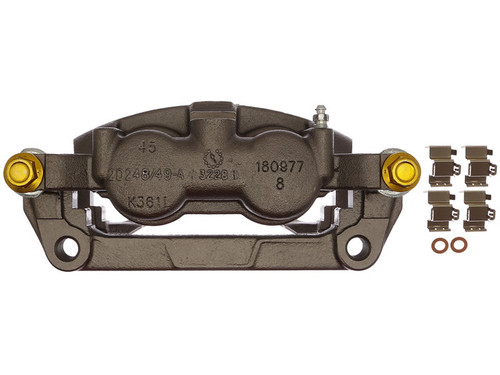

    Raybestos Brakes Disc Brake Caliper P/N:FRC12596
    Raybestos Brakes Disc Brake Caliper P/N:FRC12596
    $148.99
    $148.99

    Raybestos Brakes FRC12596 rear left brake caliper for the 2013-2022 Ford F-250 Super Duty and other vehicles presses the pads against the rotor to slow the wheel. This remanufactured semi-loaded caliper and bracket assembly has a floating design.

    • Raybestos R-Line series of non-plated remanufactured brake calipers
    • All new rubber and sealing components, including seals, boots and bleeder screws
    • Castings, guide pins and brackets are inspected before they are reused
    • New abutment hardware, banjo bolts and O-rings
    • EPDM70 rubber components for heat resistance and durability
    • 100% pressure tested

    Quick facts

    • Part: Raybestos Brakes FRC12596 brake caliper
    • Also called: disc brake caliper
    • Fits: 2013-2022 Ford F-250 Super Duty and other vehicles
    • Position: Rear left
    • Material: Cast iron
    • Condition: Remanufactured

    A sticking or leaking caliper can show up as the vehicle pulling to one side, uneven pad wear or fluid around the wheel. These signs alone do not prove the caliper is at fault, since a collapsed brake hose can cause a pull too. If the caliper is the cause, this assembly replaces it.

    Fits

    It is a direct-fit replacement for the 2013-2022 Ford F-250 Super Duty and the 2013-2022 Ford F-350 Super Duty, and its materials match OE specifications. The rear axle takes one caliper per side. This listing is the rear left one, so the rear right is ordered separately, and the pair on that axle is normally done at the same time.

    Specifications

    Fit and size

    • Position: rear left
    • Quantity per application: 1
    • Piston diameter: 45 mm (1.772 in)
    • Bracket mounting hole size: 16 mm
    • Bracket mounting hole thread pitch: 2 mm
    • Bleeder screw thread: 3/8-24

    Build and materials

    • Type: floating, semi-loaded caliper and bracket assembly
    • Casting material: cast iron
    • Finish: non-plated
    • Condition: remanufactured
    • Country of origin: Mexico

    In the box

    One remanufactured caliper and bracket assembly.

    Interchange: 18-B5472 · 18-P5472 · 141.65553 · 141.65556 · 142.65553 · 99-17991A · 99-18023B · 10-3427S · 11-23166-1
    SC3361 · BRCF252 · BRCF383 · DC3Z2552A · HC3Z2552A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    18-B5472, 18-P5472, 141.65553, 141.65556, 142.65553, SC3361, BRCF252, BRCF383, DC3Z2552A, HC3Z2552A, 99-17991A, 99-18023B, 10-3427S, 11-23166-1

    Frequently Asked Questions

    Is this a 2013-2022 Ford F-250 Super Duty brake caliper for the rear left?

    Yes. Raybestos Brakes FRC12596 is the rear left caliper for the 2013-2022 Ford F-250 Super Duty and other vehicles. The rear right side is a separate caliper.

    What size is the piston on the Raybestos Brakes FRC12596 caliper?

    The piston is 45 mm (1.772 in) across, and the caliper is a floating type. The bleeder screw thread is 3/8-24.

    Is this disc brake caliper pressure tested?

    Yes. Every Raybestos Brakes FRC12596 is 100% pressure tested, and its seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new parts.

    What does a sticking rear caliper feel like?

    A sticking caliper can feel like a dragging wheel, a burning smell after a drive, or a pad that wears faster than the one on the other side. Fluid around the wheel needs prompt attention, so have the brakes checked.

    Does this caliper replace number 18-P5472?

    Yes. 18-P5472 is listed as an interchange number for Raybestos Brakes FRC12596, the rear left caliper and bracket assembly.
