Remanufactured Front Left Brake Caliper for 1999-2004 Jeep Grand Cherokee - Raybestos FRC11396

$181.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: FRC11396
    UPC: 829352176856
    Condition: Refurbished
    Weight: 15.50 LBS
    Item Package Quantity: 1
    $181.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Caliper P/N:FRC11396
    Raybestos Brakes Disc Brake Caliper P/N:FRC11396
    $181.99
    $181.99

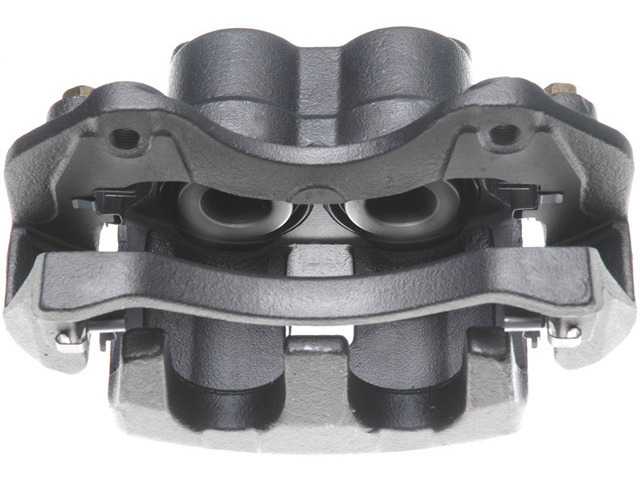

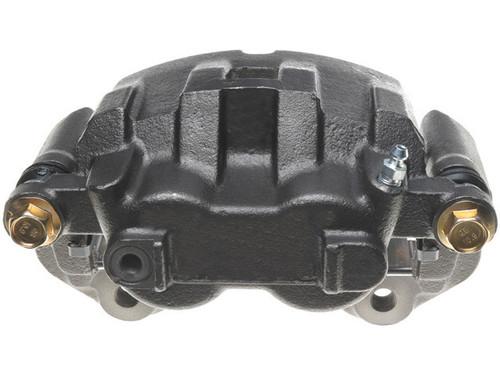

    Raybestos Brakes FRC11396 front left brake caliper for the 1999-2004 Jeep Grand Cherokee squeezes the brake pads against the rotor to slow the vehicle. It is a remanufactured, semi-loaded caliper and bracket assembly built with all new rubber and sealing components.

    • Raybestos R-Line series non-plated remanufactured caliper
    • Castings, guide pins and brackets are inspected before they are reused
    • Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new parts
    • Every caliper is 100% pressure tested
    • EPDM70 rubber components for heat resistance, performance and durability

    Quick facts

    • Part: Raybestos Brakes FRC11396 brake caliper
    • Also called: disc brake caliper
    • Fits: 1999-2004 Jeep Grand Cherokee
    • Position: Front left
    • Material: Cast iron
    • Condition: Remanufactured

    Fluid around the piston boot or bleeder screw, a vehicle that pulls to one side under braking, or one pad that wears faster than the others can mean a sticking or leaking caliper. Those signs can also come from a worn pad, hose or rotor, so during a brake service, look over the pads, rotor and hose with the engine off to find the cause first.

    Fits

    This caliper fits the 1999-2004 Jeep Grand Cherokee, which takes one on the front left. This listing is one caliper; the front right is a separate part, and the other caliper on that axle is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity per vehicle: 1 (front left)
    • Piston diameter: 47.498 mm (1.870 in)
    • Piston quantity: 2
    • Bleeder screw thread: M10X1.00
    • Bracket mounting hole: M12, thread pitch 1.25 mm
    • Mounting bracket: included

    Build and materials

    • Type: Floating, semi-loaded caliper and bracket assembly
    • Condition: Remanufactured
    • Casting material: Cast iron
    • Casting number: 4802
    • Finish: Coated caliper and bracket
    • Country of origin: Mexico

    In the box

    One remanufactured brake caliper with its mounting bracket.

    Interchange: 18-B4827 · 15-11194 · 99-17683B · 18-P4827 · 141.58006 · 142.58006 · 14-1194
    SC4415

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    18-B4827, 15-11194, 99-17683B, 18-P4827, 141.58006, 142.58006, SC4415, 14-1194

    Frequently Asked Questions

    Does Raybestos Brakes FRC11396 fit the 1999-2004 Jeep Grand Cherokee?

    Yes. Raybestos Brakes FRC11396 is the front left brake caliper for the 1999-2004 Jeep Grand Cherokee; the front right side is a separate part.

    Does this remanufactured front left caliper come with its mounting bracket?

    Yes. Raybestos Brakes FRC11396 is a semi-loaded caliper and bracket assembly, so the mounting bracket is included.

    What size is the piston on this disc brake caliper?

    The piston diameter is 47.498 mm (1.870 in), and the caliper has two pistons. The bleeder screw thread is M10X1.00.

    How can I tell if a front left caliper is sticking or leaking?

    Signs can include the vehicle pulling to one side when braking, brake fluid around the caliper, or one pad wearing faster than the rest. A shop can test the hydraulic side.

    What rubber is used in this remanufactured brake caliper?

    The rubber components are EPDM70, and all rubber and sealing parts are new, including seals, boots and O-rings. Each caliper is also 100% pressure tested.
