Remanufactured Rear Left Brake Caliper for 2008-2016 Dodge Grand Caravan & More - Raybestos FRC12004

$207.99

Vehicles this part fits

    Part number: FRC12004
    UPC: 829352659663
    Condition: Refurbished
    Weight: 9.00 LBS
    Item Package Quantity: 1
    $207.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Caliper P/N:FRC12004
    Raybestos Brakes Disc Brake Caliper P/N:FRC12004
    $207.99
    $207.99

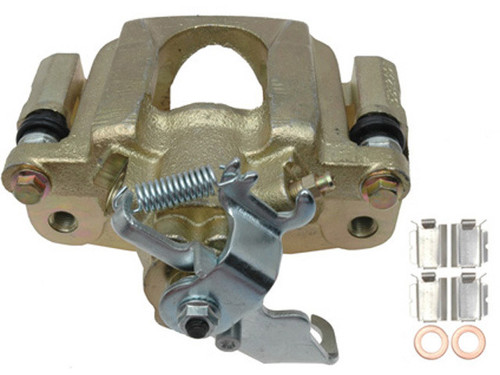

    Raybestos Brakes FRC12004 rear left brake caliper for the 2008-2016 Dodge Grand Caravan and other vehicles clamps the pads against the rotor to slow the wheel. This remanufactured, semi-loaded caliper and bracket assembly, also called a disc brake caliper, has an integral parking brake.

    • Raybestos R-Line non-plated remanufactured brake caliper
    • New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation
    • Castings, guide pins and brackets inspected before being reused
    • 100% pressure tested
    • EPDM70 rubber components for heat resistance and durability
    • Silicone boots for heavy duty applications, where applicable

    Quick facts

    • Part: Raybestos Brakes FRC12004 brake caliper
    • Also called: disc brake caliper
    • Fits: 2008-2016 Dodge Grand Caravan and other vehicles
    • Position: Rear left
    • Material: Cast iron
    • Condition: Remanufactured

    Brake fluid around the boot, the car pulling to one side or a weak parking brake can mean this caliper is worn, though a worn brake pad or a damaged brake hose can be behind them too, so find the actual cause first.

    Fits

    Vehicles it fits include the 2008-2016 Dodge Grand Caravan, the 2008-2016 Chrysler Town & Country and the 2012-2015 Ram C/V. The rear left side takes a single caliper; the rear right is a separate part ordered separately, and the two sides are normally replaced together.

    Specifications

    Fit and size

    • Position: Rear left
    • Quantity per application: 1
    • Piston diameter: 42.8 mm (1.685 in)
    • Bleeder screw thread: M10x1
    • Bracket mounting hole size: 12.000 mm, thread pitch 1.500 mm

    Build and materials

    • Caliper type: Integral parking brake, semi-loaded caliper and bracket assembly
    • Casting material: Cast iron
    • Finish: Non-plated
    • Condition: Remanufactured
    • Country of origin: Mexico

    In the box

    One remanufactured rear left caliper and bracket assembly.

    Interchange: 18-B5081 · 99-17731B · 18-5489 · 18-B5489 · 18-P5081 · 18-P5489 · 141.67520 · 142.67520 · 14-1302
    SC0211

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    18-B5081, 99-17731B, 18-5489, 18-B5489, 18-P5081, 18-P5489, 141.67520, 142.67520, SC0211, 14-1302

    Frequently Asked Questions

    Is this a 2008-2016 Dodge Grand Caravan brake caliper for the rear left side?

    Yes. Raybestos Brakes FRC12004 is listed for the 2008-2016 Dodge Grand Caravan, rear left. If your car is a different model, look it up in the "Vehicles it fits" section.

    Is this a C/V brake caliper for the 2012-2015 Ram C/V?

    Yes. This rear left caliper is listed for the 2012-2015 Ram C/V. The rear right side is a separate part.

    What piston size and bleeder thread does the Raybestos Brakes FRC12004 caliper have?

    The piston diameter is 42.8 mm (1.685 in) and the bleeder screw thread is M10x1. The bracket mounting holes are 12.000 mm with a 1.500 mm thread pitch.

    How can I tell if a rear caliper is sticking or leaking?

    Brake fluid around the caliper or its boot, the car pulling to one side when braking, or a parking brake that feels weak can point to the caliper. These signs can have other causes, and a shop can test it.

    Is 18-5489 a cross-reference number for this rear left caliper?

    Yes. 18-5489 is one of the numbers Raybestos Brakes FRC12004 replaces; the rest are on the Interchange line.
