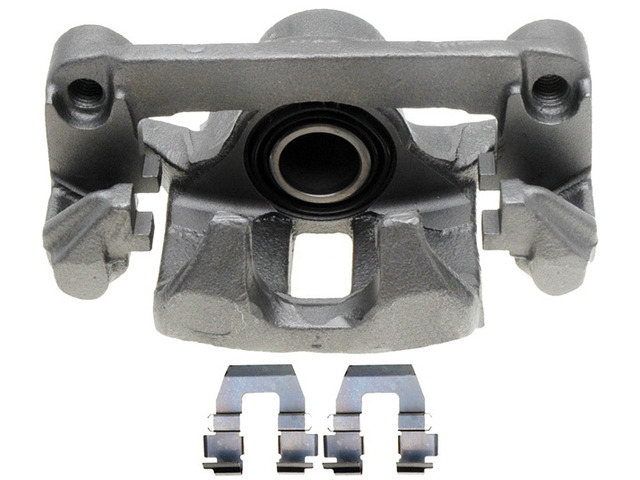

Raybestos Brakes FRC10841 rear left brake caliper for the 2000-2010 Chevrolet Impala and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured semi-loaded unit, also called a disc brake caliper, comes with its bracket.
- Raybestos R-Line non-plated remanufactured caliper line
- New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings replace the old ones
- Castings, guide pins and brackets are inspected before they are reused
- 100% pressure tested
- EPDM70 rubber components for heat resistance and durability
- Silicone boots for heavy-duty applications, where applicable
Quick facts
- Part: Raybestos Brakes FRC10841 brake caliper
- Also called: disc brake caliper
- Fits: 2000-2010 Chevrolet Impala and other vehicles
- Position: Rear left
- Material: Cast iron
- Condition: Remanufactured
Worn pads, a worn rotor or a damaged brake hose can sit behind a pull to one side, a dragging brake or fluid around the wheel, so find the cause before you buy a caliper. If a failing caliper is behind those signs, this one replaces it.
Fits
This caliper is listed for a wide range of Chevrolet, Buick, Oldsmobile and Pontiac models, led by the 2000-2010 Chevrolet Impala, the 2008-2009 Buick LaCrosse and the 2008-2009 Buick Allure, and each takes one at the rear left. This listing is one caliper; the rear right on that axle is a separate part and is normally done at the same time.
Specifications
Fit and size
- Position: Rear left
- Quantity per vehicle: 1
- Caliper type: Floating
- Piston diameter: 38 mm (1.496 in)
- Bleeder screw thread: M10x1.5
- Bracket mounting hole size: 12 mm
- Bracket mounting hole thread pitch: 1.75 mm
Build and materials
- Construction: Semi-loaded caliper and bracket assembly
- Casting material: Cast iron
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured semi-loaded caliper and bracket assembly.
Interchange: 15-14251 · 99-17300A · 99-17395A · 99-17395B · 18-B4644 · 18-B4644HD · 18-P4644 · 141.62553 · 142.62553 · 99-17300B · 14-4251
SC0965
This part cross-references / interchanges with the following part numbers:
15-14251, 99-17300A, 99-17395A, 99-17395B, 18-B4644, 18-B4644HD, 18-P4644, 141.62553, 142.62553, SC0965, 99-17300B, 14-4251
Frequently Asked Questions
Is this the right Impala brake caliper for the rear left of a 2000-2010 Chevrolet Impala?
Yes. Raybestos Brakes FRC10841 is listed for the rear left of the 2000-2010 Chevrolet Impala. If your car is another model, look it up in the "Vehicles it fits" section.
How wide is the piston on this rear left caliper?
The piston measures 38 mm (1.496 in) across, and the caliper is a floating type. The bleeder screw thread is M10x1.5.
What gets replaced on a remanufactured Raybestos R-Line caliper?
On Raybestos Brakes FRC10841, seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are new. The castings, guide pins and brackets are inspected before reuse.
Does Raybestos Brakes FRC10841 replace caliper number 14-4251?
Yes. 14-4251 is one of the numbers the Raybestos Brakes FRC10841 rear left caliper replaces. The full list of cross-reference numbers is on the Interchange line.
Is every R-Line remanufactured caliper pressure tested?
Yes. Each caliper is 100% pressure tested, and its rubber components are EPDM70.
