Remanufactured Front Left Brake Caliper for 2005-2012 Ford F-350 Super Duty & More - Raybestos FRC11586

$149.99

Vehicles this part fits

    Part number: FRC11586
    UPC: 829352355954
    Condition: Refurbished
    Weight: 26.00 LBS
    Item Package Quantity: 1
    $149.99
    Adding to cart… The item has been added

    Have questions?

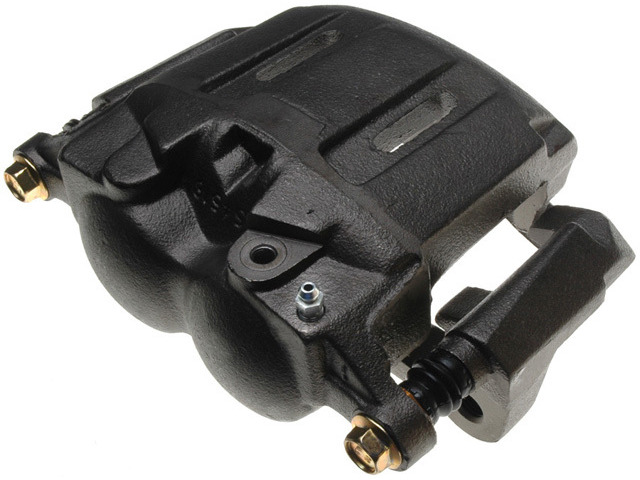

    Raybestos Brakes Disc Brake Caliper P/N:FRC11586
    Raybestos Brakes Disc Brake Caliper P/N:FRC11586
    $149.99
    $149.99

    Raybestos Brakes FRC11586 front left brake caliper for the 2005-2012 Ford F-350 Super Duty and other vehicles squeezes the brake pads against the rotor to slow the wheel. This remanufactured, semi-loaded caliper and bracket assembly is also called a disc brake caliper.

    • Raybestos R-Line non-plated caliper remanufactured with all-new rubber and sealing components
    • Castings, guide pins and brackets are inspected before they are reused
    • Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials for leak-free operation
    • Silicone boots for heavy duty applications, where applicable
    • EPDM70 rubber components for heat resistance and durability
    • 100% pressure tested

    Quick facts

    • Part: Raybestos Brakes FRC11586 brake caliper
    • Also called: disc brake caliper
    • Fits: 2005-2012 Ford F-350 Super Duty and other vehicles
    • Position: Front left
    • Material: Cast iron
    • Condition: Remanufactured

    A truck that pulls to one side under braking, wears pads unevenly or shows fluid near a wheel can have a sticking or leaking caliper. Before you replace this one, rule out worn pads, a damaged brake hose or a stuck guide pin. Calipers on one axle are best changed as a left and right pair; this listing is the front left caliper only, and the front right is a separate part.

    Fits

    It is a direct-fit replacement for the 2005-2012 Ford F-350 Super Duty and the 2011-2012 Ford F-450 Super Duty. The front axle takes one caliper on each side.

    Specifications

    Fit and size

    • Position: front left
    • Quantity per application: 1
    • Caliper piston diameter: 59.9 mm (2.358 in)
    • Bracket mounting hole size: 16 mm
    • Bracket mounting hole thread pitch: 2 mm
    • Bleeder screw thread: 3/8-24

    Build and materials

    • Caliper type: floating
    • Construction: semi-loaded caliper and bracket assembly
    • Casting material: cast iron
    • Finish: non-plated
    • Condition: remanufactured
    • Country of origin: Mexico

    In the box

    One remanufactured front left semi-loaded caliper and bracket assembly.

    Interchange: 99-17939B · 18-5351 · 18-B4997 · 18-B5351 · 18-P4997 · 18-P5351 · 141.65080 · 14-3314
    SC1391

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    99-17939B, 18-5351, 18-B4997, 18-B5351, 18-P4997, 18-P5351, 141.65080, SC1391, 14-3314

    Frequently Asked Questions

    Is this the right Ford F-350 Super Duty brake caliper for a 2005-2012 truck?

    Yes, Raybestos Brakes FRC11586 is the front left caliper for the 2005-2012 Ford F-350 Super Duty; the front right side takes a separate caliper.

    Does the Raybestos FRC11586 come with the caliper bracket?

    Yes. Raybestos Brakes FRC11586 is a semi-loaded caliper and bracket assembly, supplied as one front left unit.

    What piston size does this floating brake caliper have?

    The piston measures 59.9 mm (2.358 in) across. The caliper is a floating type with a cast iron casting.

    How can I tell a front left brake caliper is sticking?

    A truck that pulls to one side when braking, or pads that wear unevenly, can mean a caliper is sticking. Fluid around the wheel can mean a leak, so have a shop inspect it promptly.

    Is 18-5351 an interchange number for Raybestos Brakes FRC11586?

    Yes, 18-5351 is one of the other-brand numbers this caliper replaces; the rest are on the Interchange line at the bottom of the page.
