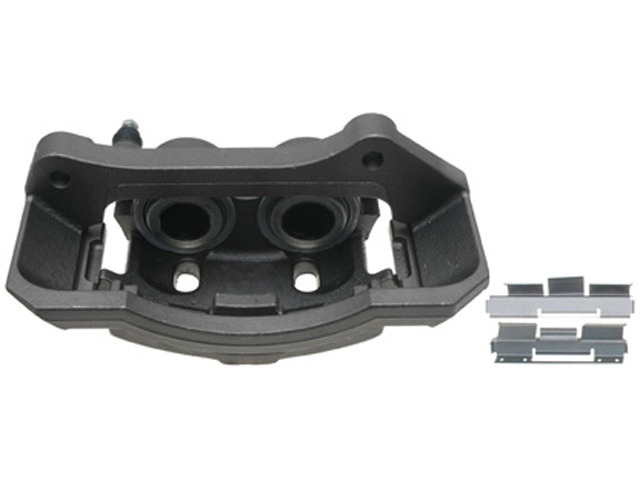

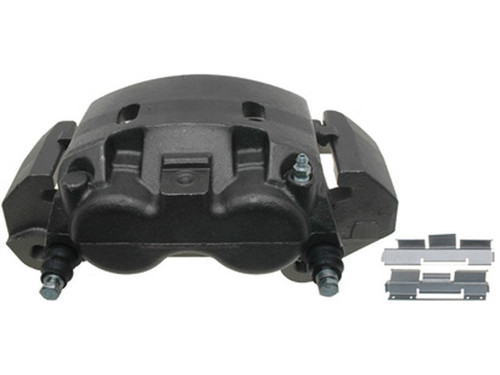

Built to clamp the brake pads against the rotor at the front left wheel, the Raybestos R-Line FRC11432 is a remanufactured, semi-loaded brake caliper and bracket assembly for the listed applications. It fits many vehicles, among them the 2006-2008 Dodge Ram 1500, 2003-2008 Dodge Ram 2500 and 2003-2008 Dodge Ram 3500. See the Buyer's Guide tab for the full list.
Raybestos R-Line non-plated disc brake calipers are remanufactured OE parts fitted with all-new rubber and sealing components, such as seals, boots and bleeders. Castings, guide pins and brackets are carefully inspected before they are reused, and each caliper is tested for dependable braking performance.
- New replacement parts: seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials, intended to keep operation leak-free.
- OE-matched materials: materials match OE specifications and meet vehicle-specific designs.
- EPDM70 rubber components: chosen for heat resistance, performance and durability.
- Pressure tested: every unit is 100% pressure tested.
This is a floating caliper with a cast iron casting and a 56.1 mm (2.209 in) piston. The bleeder screw thread is M10x1, and the bracket mounting holes are 16 mm with a 2.0 mm thread pitch. It is sold individually for the front left position, and the listed applications use one. Replacing both calipers on the same axle together is recommended for even, balanced braking. Country of origin: Mexico.
Interchange: 18-B4891 · 99-17719B · 18-P4891 · 141.67026 · 141.67036 · 142.67026 · 99-17665B · 10-1218S · 14-1218
18B4891 · 9917719B · 18P4891 · 14167026 · 14167036 · 14267026 · 9917665B · 101218S · 141218 · SC2011M
This part cross-references / interchanges with the following part numbers:
18-B4891, 99-17719B, 18-P4891, 141.67026, 141.67036, 142.67026, SC2011M, 99-17665B, 10-1218S, 14-1218
