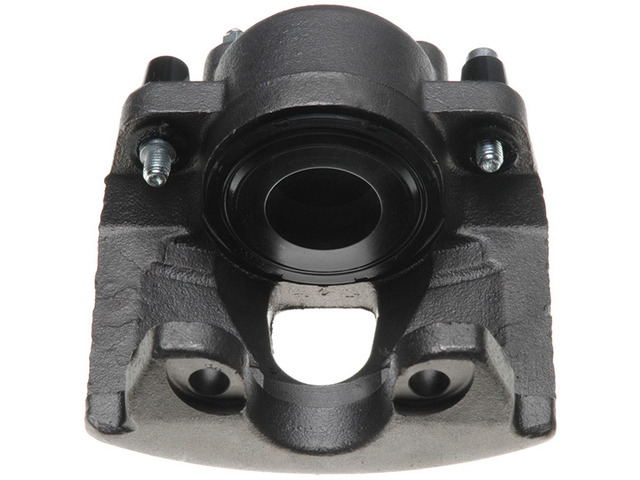

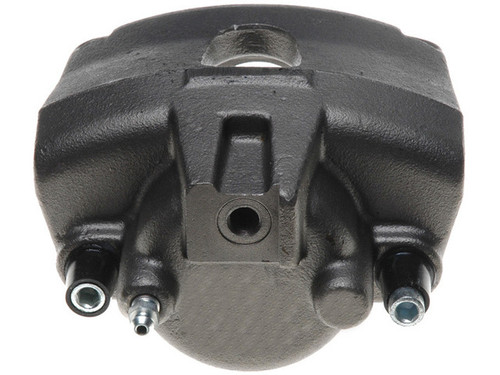

Remanufactured Front Left Brake Caliper for 2001-2007 Dodge Grand Caravan & More - Raybestos FRC11221

$101.99

Vehicles this part fits

    Part number: FRC11221
    UPC: 829352000106
    Condition: Refurbished
    Weight: 9.46 LBS
    Item Package Quantity: 1
    $101.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Caliper P/N:FRC11221
    Raybestos Brakes Disc Brake Caliper P/N:FRC11221
    $101.99
    $101.99

    Raybestos Brakes FRC11221 front left brake caliper for the 2001-2007 Dodge Grand Caravan and other vehicles presses the brake pads against the rotor to slow the wheel. This is a remanufactured, semi-loaded disc brake caliper.

    • Raybestos R-Line non-plated remanufactured caliper
    • All new rubber and sealing components: seals, boots and bleeders
    • Castings, guide pins and brackets inspected before reuse
    • Abutment hardware, banjo bolts and O-rings replaced with new parts for leak-free operation
    • 100% pressure tested
    • EPDM70 rubber components for heat resistance

    Quick facts

    • Part: Raybestos Brakes FRC11221 brake caliper
    • Also called: disc brake caliper
    • Fits: 2001-2007 Dodge Grand Caravan and other vehicles
    • Position: Front left
    • Material: Cast iron
    • Condition: Remanufactured

    A caliper that sticks or leaks can show up as the vehicle pulling to one side, uneven pad wear or brake fluid around the piston boot, and other worn brake parts can give similar symptoms. During a brake service with the engine off, look for fluid and uneven pad wear, and find the cause before replacing the caliper.

    Fits

    The 2001-2007 Dodge Grand Caravan, the 2001-2007 Chrysler Town & Country and the 2001-2003 Chrysler Voyager take this caliper, and so do other vehicles.

    Specifications

    Fit and size

    • Position: front left
    • Quantity per application: 1
    • Caliper piston diameter: 65.9 mm (2.594 in)
    • Bracket mounting hole size: 14.000 mm, thread pitch 2.000 mm
    • Bleeder screw thread: 3/8-24

    Build and materials

    • Caliper type: floating
    • Casting material: cast iron
    • Condition: remanufactured, semi-loaded, non-plated
    • Country of origin: Mexico

    In the box

    One front left brake caliper. This side takes one; the front right is a separate part ordered on its own, and both sides are normally replaced together.

    Interchange: 18-B4776 · 40-87042 · 99-17682A · 16-4776 · 18-4776 · 18-P4776 · 141.63026 · 142.63026 · 10-1182S · 14-1182 · 14-1184 · 11-22129-1 · 11-22149-1
    L55958PM · SL55958 · SL2098 · 5019806AA · SC0287 · C4776 · C668 · SLC668 · 6504 · S41237 · TQM25427

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    18-B4776, 40-87042, L55958PM, SL55958, 99-17682A, 16-4776, 18-4776, 18-P4776, SL2098, 141.63026, 142.63026, 5019806AA, SC0287, C4776, C668, SLC668, 6504, S41237, 10-1182S, 14-1182, 14-1184, TQM25427, 11-22129-1, 11-22149-1

    Frequently Asked Questions

    Is Raybestos Brakes FRC11221 the Dodge Grand Caravan caliper for the 2001-2007 model years?

    Yes. Raybestos Brakes FRC11221 is a front left brake caliper for the 2001-2007 Dodge Grand Caravan, and it also fits the 2001-2007 Chrysler Town & Country.

    Is this the Chrysler Voyager brake caliper for the 2001-2003 model years?

    Yes, this front left caliper fits the 2001-2003 Chrysler Voyager. If your own vehicle is not named here, look it up in the "Vehicles it fits" section of this page.

    What size is the piston in this front left caliper?

    The piston measures 65.9 mm (2.594 in) across, and the caliper is a floating type. The bleeder screw thread is 3/8-24.

    Which parts are replaced with new ones on Raybestos Brakes FRC11221?

    Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials. Castings, guide pins and brackets are inspected before they are reused.

    Does Raybestos Brakes FRC11221 cross to number 18-4776?

    Yes, 18-4776 is one of the numbers this caliper replaces, along with 14-1182 and 5019806AA. Every cross-reference number is on the Interchange line.
