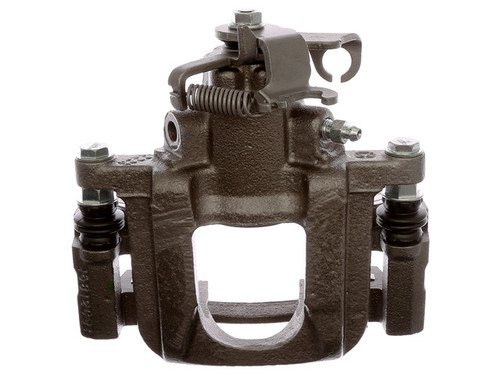

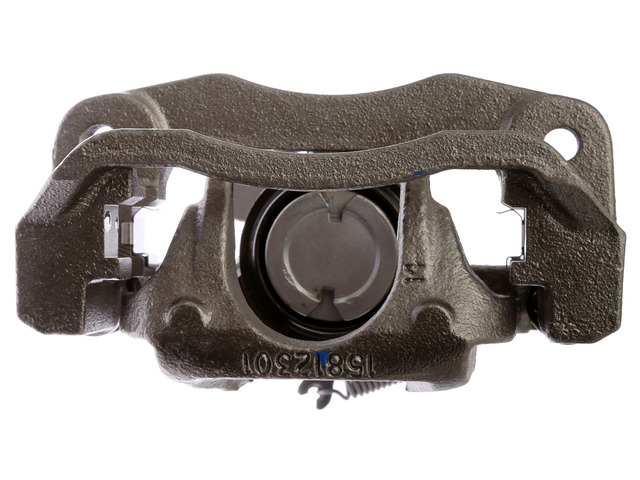

Raybestos Brakes FRC12003 rear right brake caliper for the 2008-2016 Dodge Grand Caravan and other vehicles presses the brake pads against the rotor to slow the wheel. This remanufactured, semi-loaded caliper and bracket assembly is made with materials that match OE specifications.
- Non-plated caliper rebuilt with all new rubber and sealing components
- Castings, guide pins and brackets inspected before they are reused

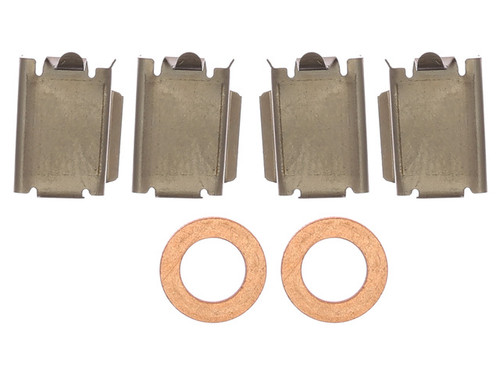

- Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings replaced with new parts for leak-free operation
- Silicone boots for heavy-duty applications, where applicable
- 100% pressure tested
- EPDM70 rubber components for heat resistance and durability
Quick facts
- Part: Raybestos Brakes FRC12003 brake caliper
- Also called: disc brake caliper
- Fits: 2008-2016 Dodge Grand Caravan and other vehicles
- Position: Rear right
- Material: Cast iron
- Condition: Remanufactured
Fluid around the caliper, a wheel that drags or a parking brake that holds poorly can mean this caliper is worn, though a damaged brake hose or a stuck parking brake cable can be behind the same signs, so find the cause first. This listing is one caliper for the rear right; the rear left is a separate part, and both sides are normally replaced together.
Fits
The 2008-2016 Dodge Grand Caravan, the 2008-2016 Chrysler Town & Country and the 2012-2015 Ram C/V are among the vehicles this brake caliper fits. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Rear right
- Quantity per vehicle: 1 for the rear right side
- Piston diameter: 42.8 mm (1.685 in)
- Bleeder screw thread: M10x1
- Bracket mounting hole: 12 mm, thread pitch 1.5 mm
Build and materials
- Caliper type: Integral parking brake
- Casting material: Cast iron
- Condition: Remanufactured, semi-loaded caliper and bracket assembly
- Country of origin: Mexico
In the box
One remanufactured caliper and bracket assembly. This listing holds one; the rear right side takes one.
Interchange: 18-B5080 · 99-17731A · 18-5488 · 18-B5488 · 18-P5080 · 18-P5488 · 141.67519 · 142.67519 · 14-1303
SC0212
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
18-B5080, 99-17731A, 18-5488, 18-B5488, 18-P5080, 18-P5488, 141.67519, 142.67519, SC0212, 14-1303
Frequently Asked Questions
Is this a 2008 Dodge Grand Caravan brake caliper for the rear right side?
Yes. Raybestos Brakes FRC12003 is a rear right caliper for the 2008-2016 Dodge Grand Caravan. Open the "Vehicles it fits" section to check your engine.
Is this a brake caliper for the 2012-2015 Ram C/V?
Yes. Raybestos Brakes FRC12003 is a rear right brake caliper that fits the 2012-2015 Ram C/V, so it goes on the rear right side only.
Does this disc brake caliper come with its bracket?
Yes. It is a caliper and bracket assembly sold as one piece for the rear right side, and the vehicle takes one on that side.
What piston size and bleeder screw thread does this caliper have?
Raybestos Brakes FRC12003 has a 42.8 mm (1.685 in) piston diameter and an M10x1 bleeder screw thread.
Is the parking brake built into this rear right caliper?
Yes. This rear right caliper is the integral parking brake type, and it is a remanufactured part with a cast iron casting.
