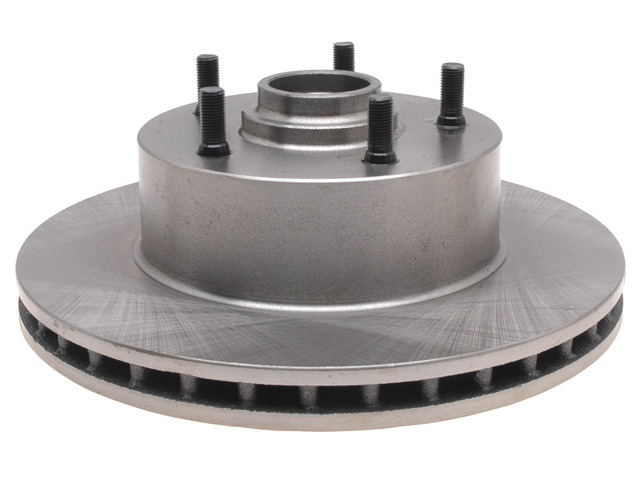

Replace a worn or warped front rotor-and-hub on your classic GM with the Raybestos R-Line Disc Brake Rotor and Hub Assembly 5100R. This front unit combines the disc brake rotor and wheel hub in a single part, providing the friction surface your brake pads clamp against while carrying the wheel studs and hub. It's cataloged as a direct-fit replacement for a wide range of 1967-1974 GM cars (all engines), including the Chevrolet Camaro, Chevelle, El Camino and Nova, Pontiac GTO, LeMans, Firebird and Tempest, Oldsmobile Cutlass, 442 and F85, and Buick Skylark and GS — see the Buyer's Guide tab for the full list of applications.
- R-Line design: part of the Raybestos R-Line, an application-specific line created for everyday driving conditions.
- Integrated rotor and hub: combines the braking surface and wheel hub in one assembly for a direct swap.
- Bolt pattern: 5 lug holes on a 4.75 in (120.65 mm) mounting bolt circle, with five 0.535 in (13.6 mm) mounting bolt holes.
- Rotor specs: nominal thickness 1.035 in (26.3 mm), minimum (discard) thickness 0.965 in (24.5 mm), overall height 3.996 in (101.5 mm).
Signs the original may need replacing include pedal pulsation or steering-wheel vibration under braking, a rotor machined to or below its discard thickness, or deep scoring — diagnose the cause before replacing. These applications use two front assemblies (one per side); this listing is for a single unit, so order two and replace both sides together as a matched set for even, balanced braking. Country of origin: China. Manufacturer part number 5100R.
Frequently Asked Questions
Is the 5100R a front or rear assembly?
It's cataloged as a front disc brake rotor and hub assembly for the listed applications.
What vehicles does it fit?
It's a direct-fit replacement for many 1967-1974 GM cars, including the Chevrolet Camaro, Chevelle, Nova, Pontiac GTO, Oldsmobile Cutlass and Buick Skylark. See the Buyer's Guide tab for the full list.
How many do I need for my car?
These applications use two front assemblies, one per side. This listing is for a single unit, so order two and replace both sides together as a matched set for balanced braking.
What is the discard thickness?
The minimum (discard) thickness is 0.965 in (24.5 mm) and nominal thickness is 1.035 in (26.3 mm). Replace the rotor if it's worn to or below the discard spec.
Where is the 5100R made?
Country of origin: China.
