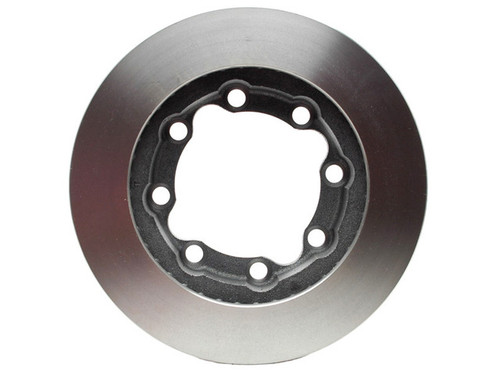

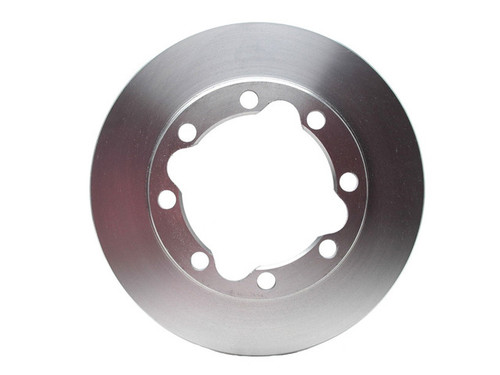

Help keep every stop smooth and steady with the Raybestos R-Line Brake Rotor, part number 56324R, a front vented disc brake rotor engineered for everyday driving conditions. It fits many vehicles, among them the 1994-1999 Dodge Ram 2500, 1990-2000 Chevrolet K3500 and 1990-2000 GMC K3500 with all engines. See the "Vehicles it fits" section for the full list.
- OE fit, form and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE standard: Meets the SAE standard for tensile strength, supporting the rotor's structural integrity.
- Low initial lateral runout and thickness variation: Tight runout and thickness-variation parameters are designed to help reduce pedal pulsation and brake noise and to extend pad life.
- Mill-balanced edges: Mill balanced and 100 percent validated, which helps minimize thickness variation for less vibration and smoother stopping.
Specifications: Cast iron, vented, conventional (not drum-in-hat) rotor with a non-directional braking surface. It has a 12.5 in (317.5 mm) outside diameter, 1.535 in (39 mm) nominal thickness, 1.465 in (37.2 mm) discard thickness, 2.76 in (70.1 mm) overall height and a 5.41 in (137.4 mm) center hole. There are 8 lug holes, each 0.645 in (16.4 mm), on a 6.5 in (165.1 mm) bolt circle. ABS tone ring not included. Country of origin: China.
This rotor is sold individually, and this listing is for one. The listed applications use two, so replacing both front rotors together as a matched pair is recommended for even, balanced braking.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Can I use this when replacing 1994-1999 Dodge Ram 2500 brake pads and rotors?
Yes. This listing is one front rotor for the 1994-1999 Dodge Ram 2500. Brake pads are not included and are sold separately, and replacing both front rotors along with new pads is recommended.
What does a brake rotor do?
It gives the brake pads a surface to clamp against, turning the vehicle's motion into heat so it can slow and stop. This rotor is a vented, conventional design.
What are the key dimensions of the 56324R?
It has a 12.5 in (317.5 mm) outside diameter and 1.535 in (39 mm) nominal thickness. Discard thickness is 1.465 in (37.2 mm), and it has 8 lug holes on a 6.5 in (165.1 mm) bolt circle.
What are signs a brake rotor may need replacing?
Common signs include pedal pulsation, vibration or noise when braking, scoring or grooves on the braking surface, and a thickness at or below the 1.465 in (37.2 mm) discard spec.
Does it include an ABS tone ring, and how many rotors do I need?
No ABS tone ring is included. The rotor is sold individually and the listed applications use two, so replacing both front rotors together is recommended for even braking.
