Bring smooth, quiet braking back to your truck's front axle with the Raybestos R-Line Disc Brake Rotor 780736R. It's a direct-fit front rotor for the 2009-2010 Dodge Ram 2500, 3500 and 4000; the 2011-2024 RAM 2500 and 3500; the 2011-2015 RAM 4000; and the 2012 RAM 1500 (All engines). Raybestos R-Line rotors are engineered for everyday driving conditions with broad application coverage.

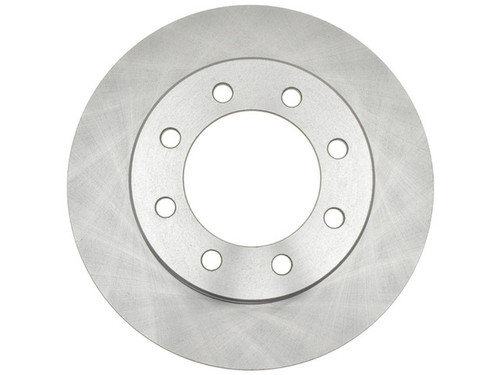

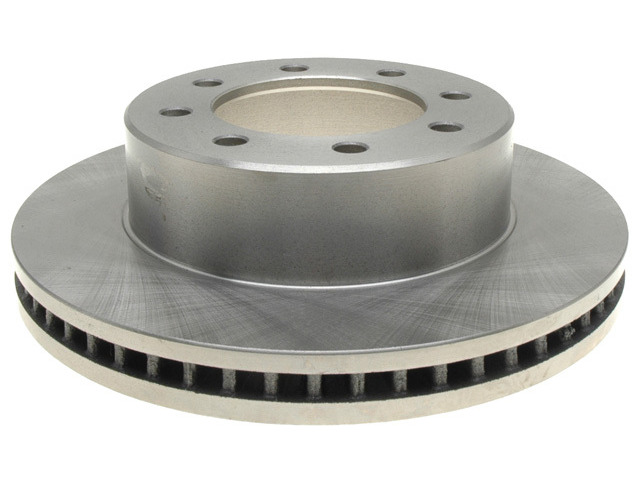

This vented cast-iron rotor measures 14.175 in (360.05 mm) outside diameter with a non-directional, smooth machined surface and 8 mounting/lug holes. Discard (minimum) thickness is 1.472 in (37.4 mm) from a 1.541 in (39.15 mm) nominal thickness. An ABS tone ring is not included. Sold individually; replacing both sides as a matched pair is recommended for even, balanced braking. Country of origin: China. Manufacturer part number 780736R.
Which vehicles does the 780736R rotor fit?
It's a front rotor for the 2009-2010 Dodge Ram 2500/3500/4000, 2012 RAM 1500, 2011-2024 RAM 2500/3500, and 2011-2015 RAM 4000 (All engines). See the Buyer's Guide tab to confirm your truck.
Is this a front or rear rotor?
The catalog lists it as a front-axle disc brake rotor for the applications shown.
Does it include an ABS tone ring?
No. The catalog lists ABS Tone Ring Included: No, so if your original rotor has a tone ring you'll need to transfer or source one as directed by the service procedure.
Should I replace both rotors at once?
Rotors are sold individually, but replacing both sides as a matched pair is recommended for even, balanced braking. Order 2 for a complete front-axle set.
What are the rotor's key dimensions?
Outside diameter is 14.175 in (360.05 mm) with 8 mounting holes, a smooth non-directional vented surface, 1.541 in (39.15 mm) nominal thickness, and a 1.472 in (37.4 mm) discard thickness.
