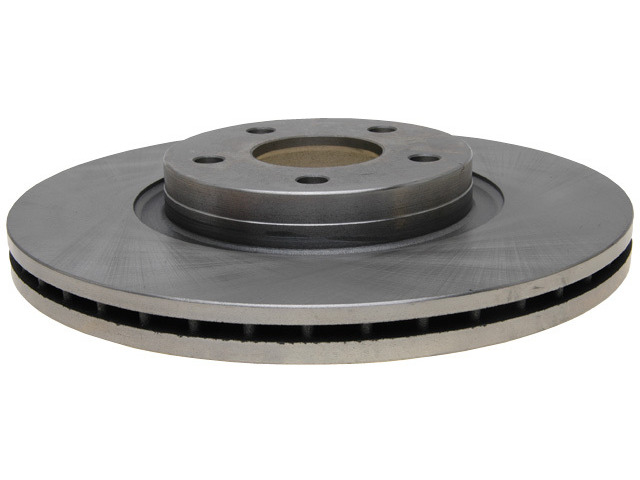

Smooth out front-brake pedal pulsation and put a fresh braking surface on the front axle with the Raybestos R-Line Disc Brake Rotor (MPN 980601R). It's a direct-fit front rotor for the 2013-2017 Ford C-MAX, 2013-2019 Ford Escape, 2007-2013 Volvo C30, 2006-2013 Volvo C70, 2004-2012 Volvo S40, and 2005-2011 Volvo V50 (all engines). Developed from OE samples and made from cast iron, it's engineered for everyday driving and OE fit, form, and function.
Specs: 300 mm (11.811 in) outside diameter, 5 stud/lug holes, 63.6 mm center bore, 4.25 in (107.95 mm) bolt-hole circle, conventional design, and a non-directional braking surface. The ABS tone ring is not included. Sold individually — replace both front rotors together as a matched pair for even, balanced braking. Manufacturer part number 980601R. Country of origin: China.
Will this rotor fit my vehicle?
It's a direct-fit front rotor for the Ford C-MAX, Ford Escape, Volvo C30, C70, S40 and V50 — see the Buyer's Guide tab for the exact year ranges.
What size is this rotor?
It has a 300 mm (11.811 in) outside diameter, five stud/lug holes, a 63.6 mm (2.504 in) center bore, a 4.25 in (107.95 mm) bolt-hole circle, and a non-directional braking surface.
Is the ABS tone ring included?
No. Per the catalog this rotor does not include an ABS tone ring; transfer or source the correct component as directed by the service procedure.
How many do I need?
Each application uses two front rotors. This listing is sold individually, so order two to replace both front rotors together as a matched pair for even, balanced braking.
What is the discard thickness?
Nominal thickness is 24.9 mm (0.98 in) and the discard/minimum thickness is 23.1 mm (0.91 in). Replace the rotor once it wears to the discard specification.
