Front Brake Rotor for 2013-2016 Chevrolet Malibu & More - Raybestos 580839R

$129.99

Vehicles this part fits

    Part number: 580839R
    UPC: 829352847350
    Condition: New
    Weight: 3.38 LBS
    Item Package Quantity: 1
    $129.99
    Adding to cart… The item has been added

    Have questions?

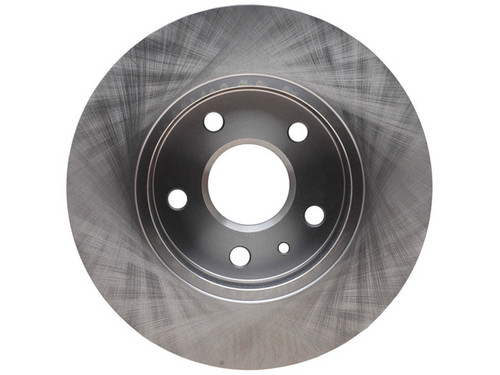

    Raybestos Brakes Disc Brake Rotor P/N:580839R
    Raybestos Brakes Disc Brake Rotor P/N:580839R
    $129.99
    $129.99

    Raybestos Brakes 580839R front brake rotor for the 2013-2016 Chevrolet Malibu and other vehicles gives the brake pads a smooth surface to clamp against when you slow down.

    • Raybestos R-Line series, engineered for everyday driving conditions
    • G3000-qualified material for dependable braking
    • Meets the SAE standard for tensile strength
    • Low lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
    • Mill-balanced edges, 100 percent validated, to minimize thickness variation and vibration for smoother stopping

    Quick facts

    • Part: Raybestos Brakes 580839R brake rotor
    • Also called: disc brake rotor
    • Fits: the 2013-2016 Chevrolet Malibu and other vehicles
    • Position: Front
    • Material: Cast Iron
    • Condition: New

    Pedal pulsation, a shaking steering wheel or noise under braking can mean a worn rotor, though pads, calipers or wheel bearings can also be behind them. During a brake service, look at the rotor with the engine off for cracks or deep grooves, and measure its thickness against the discard figure below before you replace it. This listing is one rotor; the vehicle takes two, one on each side of the front axle, so order two and fit them together.

    Fits

    This rotor is listed for a wide range of Buick, Chevrolet and Saab models, led by the 2013-2016 Chevrolet Malibu, the 2012-2016 Buick LaCrosse and the 2011-2017 Buick Regal. It is developed from OE samples for OE fit, form and function.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Outside diameter: 296 mm (11.654 in)
    • Inside diameter: 186 mm (7.323 in)
    • Center hole diameter: 67.55 mm (2.66 in)
    • Mounting bolt hole circle diameter: 119.9 mm (4.72 in), 5 lug holes
    • Mounting bolt hole diameter: 16.15 mm (0.636 in)
    • Overall height: 51.1 mm (2.012 in)
    • Nominal thickness: 30 mm (1.181 in)
    • Discard thickness: 27 mm (1.063 in)

    Build and materials

    • Type: vented, conventional rotor
    • Surface: smooth, non-directional
    • Material: Cast Iron
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is the Raybestos Brakes 580839R a Chevy Malibu brake rotor for the 2013-2016 model years?

    Yes, Raybestos Brakes 580839R is a front rotor listed for the 2013-2016 Chevrolet Malibu; for your own car, use the "Vehicles it fits" section on this page.

    Will this front rotor work as a Buick LaCrosse brake rotor for 2012-2016?

    Yes. Raybestos Brakes 580839R is listed for the 2012-2016 Buick LaCrosse as a front rotor with a 296 mm outside diameter.

    Is this disc brake rotor solid or vented?

    It is vented, not solid. This rotor is cast iron with a smooth, non-directional surface.

    At what thickness do these rotors need replacing?

    The nominal thickness is 30 mm and the discard thickness is 27 mm. Measure the rotor during a brake service; at 27 mm or less it is due for replacement.

    Does the Raybestos Brakes 580839R come with an ABS tone ring?

    No. Raybestos Brakes 580839R does not include an ABS tone ring.
