Remanufactured Front Right Brake Caliper for 2005-2010 Chevrolet Cobalt & More - Raybestos FRC11420

$93.99

Vehicles this part fits

    Part number: FRC11420
    UPC: 829352557730
    Condition: Refurbished
    Weight: 9.46 LBS
    Item Package Quantity: 1
    $93.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Caliper P/N:FRC11420
    Raybestos Brakes Disc Brake Caliper P/N:FRC11420
    $93.99
    $93.99

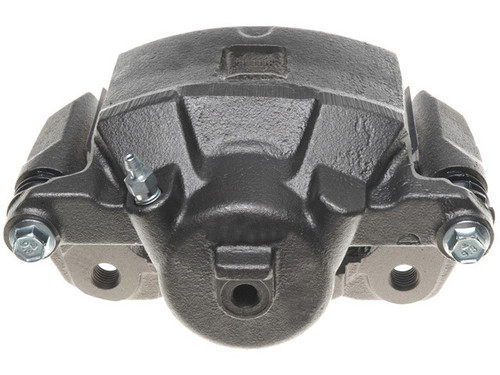

    Raybestos Brakes FRC11420 front right brake caliper for the 2005-2010 Chevrolet Cobalt and other vehicles clamps the rotor with brake fluid pressure to slow the wheel. This remanufactured, semi-loaded caliper and bracket assembly uses materials that match OE specifications.

    • Raybestos R-Line series remanufactured caliper with its mounting bracket
    • New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation
    • Castings, guide pins and brackets inspected before reuse
    • 100% pressure tested
    • EPDM70 rubber components for heat resistance and durability
    • Silicone boots for heavy-duty applications, where applicable

    Quick facts

    • Part: Raybestos Brakes FRC11420 brake caliper
    • Also called: disc brake caliper
    • Fits: 2005-2010 Chevrolet Cobalt and other vehicles
    • Position: Front right
    • Material: Cast iron
    • Condition: Remanufactured

    A fluid leak at the wheel, a car that pulls to one side when braking or a brake that drags can mean the caliper is worn, though a collapsed brake hose or a worn tire can be behind the same signs. There is one caliper on each side of the front axle; this listing is the front right one, the front left is a separate part, and the two are normally replaced together.

    Fits

    The 2005-2010 Chevrolet Cobalt, the 2007-2009 Pontiac G5 and the 2003-2007 Saturn Ion are among the vehicles this caliper fits. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity per application: 1
    • Caliper type: Floating
    • Piston quantity: 1
    • Piston diameter: 53.848 mm (2.12 in)
    • Bleeder screw thread: M10X1.00
    • Casting number: 5420 R

    Build and materials

    • Construction: remanufactured, semi-loaded caliper and bracket assembly
    • Caliper casting material: cast iron
    • Finish: coated caliper and bracket
    • Condition: Remanufactured
    • Country of origin: Mexico

    In the box

    One front right remanufactured brake caliper with its mounting bracket.

    Interchange: 18-B4881 · 15-14055 · 99-17338B · 18-P4881 · 141.62107 · 142.62107 · 142.62179 · 14-4055
    22687792

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    18-B4881, 15-14055, 99-17338B, 18-P4881, 141.62107, 142.62107, 142.62179, 22687792, 14-4055

    Frequently Asked Questions

    Does this front right caliper work as a brake caliper for the 2007-2009 Pontiac G5?

    Yes. Raybestos Brakes FRC11420 fits the 2007-2009 Pontiac G5 on the front right side; the front left takes a separate caliper.

    Does the FRC11420 caliper come with its mounting bracket?

    Yes. This remanufactured, semi-loaded unit is a caliper and bracket assembly, so the bracket is included. It covers the front right side only.

    What size is the piston on this floating caliper?

    Raybestos Brakes FRC11420 has one piston measuring 53.848 mm (2.12 in) across. The bleeder screw thread is M10X1.00.

    What gets replaced on this remanufactured disc brake caliper?

    Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are swapped for new parts. The castings, guide pins and bracket are inspected before they are reused.

    Is 22687792 the same as Raybestos FRC11420?

    Yes. 22687792 is one of the numbers this Raybestos Brakes FRC11420 caliper replaces. It is the front right side only.
