Front Left CV Axle for 2010-2012 Ford Fusion & More - CARDONE New 66-2250

$152.99

Vehicles this part fits

    Part number: 66-2250
    UPC: 884548116603
    Condition: New
    Weight: 15.90 LBS
    Item Package Quantity: 1
    $152.99
    Adding to cart… The item has been added

    Have questions?

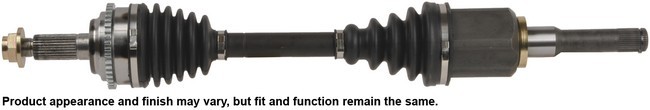

    CARDONE New CV Axle Assembly P/N:66-2250
    CARDONE New CV Axle Assembly P/N:66-2250
    $152.99
    $152.99

    CARDONE New 66-2250 front left CV axle for the 2010-2012 Ford Fusion and other vehicles carries drive torque from the transaxle to the wheel hub. This new CV axle assembly is engineered around the reasons original axles typically fail and meets O.E. form, fit and function.

    • Neoprene boots with additional bellows, when needed, to resist bellows stress and cracking
    • Shaft individually verified for straightness for vibration-free performance at all speeds
    • New axle retaining nut supplied with every axle, since the original nut is likely worn or stripped
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease built for high-temperature and high-torque demands
    • Splines and threads precision rolled to fit the hub, the transmission and the axle nut

    Quick facts

    • Part: CARDONE New 66-2250 CV axle
    • Also called: CV axle assembly
    • Fits: 2010-2012 Ford Fusion and other vehicles
    • Position: Front left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking or snapping when you turn hard under power, a thump or vibration when you accelerate, or grease on the chassis and suspension can mean an axle joint or boot is failing. These signs alone do not prove the axle is the problem; a broken engine mount can also bind the inner joint.

    Fits

    It is a front left CV axle replacement for the 2010-2012 Ford Fusion and the 2010-2011 Mercury Milan.

    Specifications

    Fit and size

    • Position: front left
    • Quantity per vehicle for this side: 1
    • Shaft diameter: 28 mm (1.102 in)
    • Compressed length: 668.34 mm (26.312 in)
    • Inboard splines: 35
    • Outboard splines: 28
    • Axle nut thread: M22x1.5
    • Axle nut socket size: 32 mm (1.26 in)

    Build and materials

    • Shaft material: steel
    • Boot material: neoprene, 5 ribs
    • Inboard and outboard joints: splined
    • CV joints: included
    • ABS tone ring: included, toothed, 44 teeth
    • Axle nut: included, hex
    • Condition: new
    • Country of origin: China

    In the box

    This listing holds one complete CV axle with its CV joints, ABS tone ring and axle nut, plus an instruction sheet. The front left takes one; the front right is a separate part ordered separately.

    Installation notes

    • Tighten the axle retaining nut with a torque wrench to the manufacturer's specification, never an impact wrench.
    • Remove and install one CV axle at a time.
    • Fit new transaxle seals when replacing the axle to avoid leaks.

    Interchange: AE5Z3A427C · AE5Z3A427F

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    AE5Z3A427C, AE5Z3A427F

    Frequently Asked Questions

    Is this a CV axle for the 2010-2012 Ford Fusion?

    Yes. CARDONE New 66-2250 is a front left CV axle for the 2010-2012 Ford Fusion. The front right side is a separate part.

    Does this front left CV axle come with an axle nut and ABS tone ring?

    Yes. CARDONE New 66-2250 comes with a new M22x1.5 hex axle nut, the CV joints and a toothed ABS tone ring, plus an instruction sheet.

    What are the shaft diameter and spline counts of this CV axle?

    The shaft is 28 mm (1.102 in) in diameter, with 35 inboard splines and 28 outboard splines. Compressed length is 668.34 mm (26.312 in).

    What happens when a CV axle boot splits?

    A ruptured boot lets grease leak out and lets water and dirt into the joint, which can damage it. Grease on the chassis and suspension can point to a boot problem, so have a shop inspect it.

    Can I use an impact wrench on the nut for this CV axle?

    No. Use a torque wrench and tighten the retaining nut to the manufacturer's specification, never an impact wrench.
