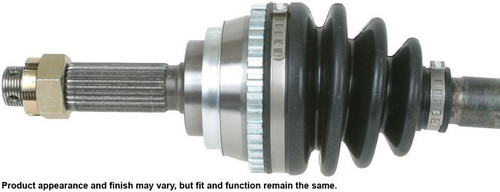

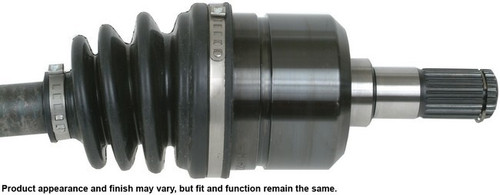

CARDONE New 66-3313 front right CV axle for the 2000-2005 Hyundai Accent and other vehicles carries drive torque to the wheel. The CV axle assembly was designed after researching why original CV axles typically fail, with new solutions aimed at avoiding a repeat failure.
- Neoprene boots with additional bellows where needed to resist bellow stress and cracking, the leading cause of boot failure
- Every shaft is individually verified for straightness for vibration-free running at all speeds
- New axle retaining nut supplied, since the original nut is likely worn or stripped
- Boot clamps are pneumatically crimped to seal the boot to the housing
- Grease that withstands high-temperature and high-torque demands
- Precision-rolled splines and threads for fit in the hub, the transmission and the axle nut
Quick facts
- Part: CARDONE New 66-3313 CV axle
- Also called: CV axle assembly
- Fits: 2000-2005 Hyundai Accent and other vehicles
- Position: Front right
- Material: Steel shaft with neoprene boots
- Condition: New
A clicking noise when turning hard, a thump or vibration under acceleration, or grease thrown from a torn boot can mean a CV axle is worn. These signs alone do not prove the axle is at fault; a worn wheel bearing is another common source of noise.
Fits
It is a CV axle replacement for the 2000-2005 Hyundai Accent and the 2004 Dodge Verna. The car takes one on each side; this listing is the front right, and the front left is ordered separately.
Specifications
Fit and size
- Position: front right
- Quantity per vehicle: 1 for this side
- Shaft diameter: 25 mm (0.984 in)
- Compressed length: 909.64 mm (35.812 in)
- Inboard joint: splined, 25 splines
- Outboard joint: splined, 25 splines
- Axle nut: hex, M22x1.5 thread, 32 mm socket, 21.5 mm long
Build and materials
- Shaft material: steel
- Boot: neoprene, 3 ribs
- CV joints: included
- ABS tone ring: included, toothed, 44 teeth
- Condition: new
- Country of origin: China
In the box
One CV axle with a new axle retaining nut, and an instruction sheet.
Installation notes
- Never reuse a prevailing torque lock nut; the new axle retaining nut replaces it.
- Tighten the nut with a torque wrench to the vehicle maker's specification, and never use an impact wrench.
- Remove and install one CV axle at a time, and fit new transaxle seals to avoid leaks.
- Use a press-type tool to remove the old stub shaft, and never strike it with a hammer.
Interchange: 4950025410 · 4950025510 · 4950025511
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
4950025410, 4950025510, 4950025511
Frequently Asked Questions
Is this a 2000-2005 Hyundai Accent CV axle for the front right side?
Yes. CARDONE New 66-3313 fits the front right on the 2000-2005 Hyundai Accent and the 2004 Dodge Verna.
Does this CV axle come with a new axle nut?
Yes. The axle comes with a new hex axle retaining nut (M22x1.5 thread, 32 mm socket) and an instruction sheet.
Does this front right CV axle include the ABS tone ring?
Yes. This front right CV axle includes a toothed ABS tone ring with 44 teeth.
How can I tell if a CV axle boot is failing?
A torn neoprene boot lets grease out and dirt in. Grease spatter near the wheel or clicking when you turn can be signs, and a shop can inspect the boot.
Does 4950025410 interchange with this CV axle?
Yes. 4950025410 is listed as an interchange number for CARDONE New 66-3313, along with 4950025510 and 4950025511.
