Front Left CV Axle for 2004-2006 Chrysler Pacifica - A1 CARDONE 66-3399

$120.99

Vehicles this part fits

    Part number: 66-3399
    UPC: 082617826082
    Condition: New
    Weight: 16.00 LBS
    Item Package Quantity: 1
    $120.99
    Adding to cart… The item has been added

    Have questions?

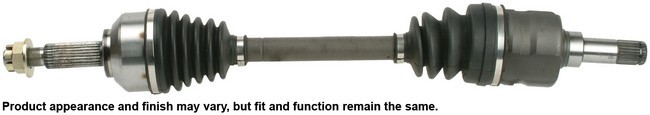

    CARDONE New CV Axle Assembly P/N:66-3399
    CARDONE New CV Axle Assembly P/N:66-3399
    $120.99
    $120.99

    A1 CARDONE 66-3399 front left CV axle for the 2004-2006 Chrysler Pacifica carries drive torque from the transaxle to the wheel. This new CV axle assembly is engineered to O.E. form, fit and function.

    • Neoprene boots with extra bellows where needed to resist bellow stress and cracking
    • Shaft individually verified for straightness, for vibration-free performance at all speeds
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Splines and threads precision rolled to mate with the hub, the transmission and the axle nut
    • A1 CARDONE axles are measured after assembly to validate their dimensions

    Quick facts

    • Part: A1 CARDONE 66-3399 CV axle
    • Also called: CV axle assembly
    • Fits: 2004-2006 Chrysler Pacifica
    • Position: Front left
    • Material: Steel shaft, neoprene boot
    • Condition: New

    Clicking when turning under power, grease around a torn boot, or a thump and vibration on acceleration can mean the axle is worn. Before you replace it, rule out a broken engine mount that lets the drivetrain shift and bind the inner joint.

    Fits

    It is a direct-fit replacement for the 2004-2006 Chrysler Pacifica, which takes one axle on the front left. This listing is one side; the front right is a separate part, normally replaced at the same time.

    Specifications

    Fit and size

    • Position: Front left
    • Shaft diameter: 27 mm (1.063 in)
    • Compressed length: 687.39 mm (27.062 in)
    • Inboard splines: 25
    • Outboard splines: 26
    • Axle nut thread size: M22x1.5
    • Axle nut socket size: 32 mm (1.26 in)

    Build and materials

    • Shaft material: steel
    • Boot material: neoprene
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    In the box

    One CV axle with both CV joints, one axle retaining nut and an instruction sheet.

    Installation notes

    • Remove and install one CV axle at a time; losing transaxle gear alignment can mean opening the transaxle.
    • Use the supplied new axle nut and tighten it with a torque wrench to the manufacturer's specification, never an impact wrench.
    • Use a press-type tool on a stuck outer stub shaft and never strike it with a hammer.
    • Install new transaxle seals when replacing the axle.

    Interchange: 4641971AA · 4641971AC

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    4641971AA, 4641971AC

    Frequently Asked Questions

    Does the A1 CARDONE 66-3399 front left axle fit the 2004-2006 Chrysler Pacifica?

    Yes. A1 CARDONE 66-3399 is the front left CV axle for the 2004-2006 Chrysler Pacifica. The front right side is a separate part.

    What comes with the A1 CARDONE cv drive axle 66-3399?

    The A1 CARDONE 66-3399 includes the axle with both CV joints, one axle retaining nut and an instruction sheet. The ABS tone ring is not included.

    What size is the axle nut that comes with this CV axle?

    It is a hex nut with M22x1.5 threads and a 32 mm (1.26 in) socket size. The nut is 18 mm (0.709 in) long.

    What can a clicking noise when turning hard mean on a CV axle?

    Clicking or snapping when you turn hard under power can mean a worn CV joint, for example after a torn boot lets grease out and dirt in. A shop can confirm the cause.

    Is 4641971AA the same part as the A1 CARDONE 66-3399 CV axle?

    Yes. 4641971AA is listed as an interchange number for the A1 CARDONE 66-3399 CV axle, and 4641971AC is listed with it.
