Front Right CV Axle for 1999-2005 Hyundai Sonata & More - CARDONE New 66-3405

$108.99

Vehicles this part fits

    Part number: 66-3405
    UPC: 082617768795
    Condition: New
    Weight: 21.40 LBS
    Item Package Quantity: 1
    $108.99
    Adding to cart… The item has been added

    Have questions?

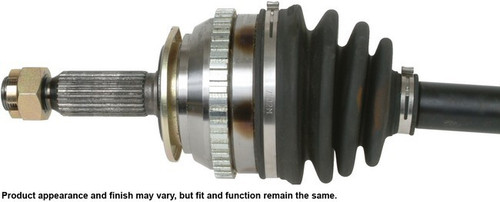

    CARDONE New CV Axle Assembly P/N:66-3405
    CARDONE New CV Axle Assembly P/N:66-3405
    $108.99
    $108.99

    CARDONE New 66-3405 front right CV axle for the 1999-2005 Hyundai Sonata and other vehicles carries drive torque from the transaxle to the front right wheel. Sold as a complete CV axle assembly, it is built to O.E. form, fit and function.

    • Neoprene boots with added bellows where needed to resist bellow stress and cracking, the leading cause of boot failure
    • Every shaft is individually verified for straightness, for vibration-free running at all speeds
    • Axle measurements are validated after assembly to confirm a proper fit
    • Boot clamps are pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Splines and threads are precision rolled for correct fit in the hub, the transmission and the axle nut

    Quick facts

    • Part: CARDONE New 66-3405 CV axle
    • Also called: CV axle assembly
    • Fits: 1999-2005 Hyundai Sonata and other vehicles
    • Position: Front right
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking or snapping when you turn hard under power, a thump or vibration when you accelerate, or grease thrown from a torn boot can mean the axle is worn. A broken engine mount can cause a similar thump, so these signs alone do not prove the axle is at fault.

    Fits

    This is a direct-fit CV axle replacement for the 1999-2005 Hyundai Sonata. It also fits the 2001-2006 Kia Optima and the 2001-2006 Kia Magentis. The front takes one axle on each side; this listing is the front right, and the front left is ordered separately.

    Specifications

    Fit and size

    • Position: front right
    • Quantity per application: 1
    • Shaft diameter: 28 mm (1.102 in)
    • Compressed length: 971.55 mm (38.25 in)
    • Inboard and outboard joints: splined, 27 splines each
    • Axle nut: hex, M22x1.5 thread, 32 mm socket size, 21.5 mm long

    Build and materials

    • Shaft material: steel
    • Boot: neoprene, 3 ribs
    • CV joints: included
    • ABS tone ring: included, toothed, 47 teeth
    • Condition: new
    • Country of origin: China

    In the box

    One CV axle, a new axle retaining nut and an instruction sheet.

    Installation notes

    • Remove and install one axle at a time.
    • Tighten the retaining nut with a torque wrench to the manufacturer's specification; never use an impact wrench.
    • Use a press-type tool to free a stuck stub shaft; never strike it with a hammer.
    • Install new transaxle seals when replacing the axle.

    Interchange: 4950026670 · 4950026671 · 4950038451 · 4950038452 · 4950038491 · 4950038492 · 4950838E00 · 4950838F00 · 4950838G00 · 4950838H00 · 4950038450 · 4950038490 · 495003C451 · 495003C452 · 495003C491 · 495003C492

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    4950026670, 4950026671, 4950038451, 4950038452, 4950038491, 4950038492, 4950838E00, 4950838F00, 4950838G00, 4950838H00, 4950038450, 4950038490, 495003C451, 495003C452, 495003C491, 495003C492

    Frequently Asked Questions

    Is this the front axle for the 1999-2005 Hyundai Sonata?

    Yes, CARDONE New 66-3405 is the front right CV axle for the 1999-2005 Hyundai Sonata; the front left side is a separate part.

    Is this the right CV axle for the 2001-2006 Kia Optima?

    Yes, the 66-3405 fits the 2001-2006 Kia Optima in the front right position, and the front left takes its own axle.

    Does this CV axle come with a new axle nut?

    Yes. This CARDONE axle includes a new hex axle nut (M22x1.5 thread, 32 mm socket size) and an instruction sheet, since the original nut is often worn or stripped.

    Does this front right axle include the ABS tone ring?

    Yes, the ABS tone ring is included, and it is a toothed ring with 47 teeth.

    Can I use an impact wrench on the axle retaining nut?

    No. Use a torque wrench and tighten the nut to the manufacturer's specification, removing and installing one axle at a time.
