Front Left CV Axle for 2003-2004 Honda Pilot & More - A1 CARDONE 66-4202

$154.99

Vehicles this part fits

    Part number: 66-4202
    UPC: 082617771443
    Condition: New
    Weight: 18.00 LBS
    Item Package Quantity: 1
    $154.99
    Adding to cart… The item has been added

    Have questions?

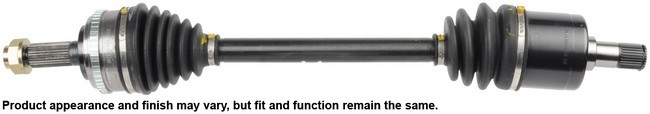

    CARDONE New CV Axle Assembly P/N:66-4202
    CARDONE New CV Axle Assembly P/N:66-4202
    $154.99
    $154.99

    A1 CARDONE 66-4202 front left CV axle for the 2003-2004 Honda Pilot and other vehicles carries drive torque from the transmission to the wheel hub. This A1 CARDONE CV axle is engineered to meet O.E. form, fit and function.

    • Neoprene boots with extra bellows where needed to resist bellow stress and cracking, the leading cause of boot failure
    • Every axle shaft is individually verified for straightness, for vibration-free performance at all speeds
    • Boot clamps are pneumatically crimped to seal the boot to the housing
    • Grease made to withstand high-temperature and high-torque demands
    • Precision-rolled splines fit the mating hub and transmission, and precision-rolled threads fit the axle nut
    • Transmission seal diameter is precision-machined after heat treatment for the correct surface finish and long seal life

    Quick facts

    • Part: A1 CARDONE 66-4202 CV axle
    • Also called: CV axle assembly
    • Fits: 2003-2004 Honda Pilot and other vehicles
    • Position: Front left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking or snapping when you turn, a thump or vibration when you accelerate, or grease around a torn boot can mean the CV axle is worn. A broken engine mount, a worn hub bearing or a damaged ABS sensor ring can be behind some of these signs too, so pin down the cause before you buy.

    Fits

    This front left CV axle fits the 2003-2004 Honda Pilot and the 2001-2002 Acura MDX. The front left takes one axle, and the front right is a separate part ordered on its own.

    Specifications

    Fit and size

    • Position: front left
    • Quantity per vehicle: 1 (this side)
    • Shaft diameter: 28 mm (1.102 in)
    • Compressed length: 708.02 mm (27.875 in)
    • Inboard splines: 29
    • Outboard splines: 28
    • Axle nut: hex, M24x1.5 thread, 36 mm (1.417 in) socket, 23 mm (0.906 in) long

    Build and materials

    • Shaft material: steel
    • Boot: neoprene, 5 ribs
    • CV joints: included
    • ABS tone ring: included, toothed, 50 teeth
    • Condition: new
    • Country of origin: China

    In the box

    One complete CV axle, one new axle nut and one instruction sheet.

    Installation notes

    • The old prevailing torque lock nut should be discarded and never reused.
    • Tighten the axle nut with a torque wrench to the manufacturer's specification, never an impact wrench.
    • Remove and install one axle at a time, and fit new transaxle seals to avoid leaks.

    Interchange: 44306S3VA52 · 44306S9VA01

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    44306S3VA52, 44306S9VA01

    Frequently Asked Questions

    Is A1 CARDONE 66-4202 the right CV axle replacement for a 2004 Honda Pilot (2003-2004)?

    Yes. A1 CARDONE 66-4202 is the front left CV axle for the 2003-2004 Honda Pilot, and the front right side is a separate part.

    Does the 2001-2002 Acura MDX take this front left axle?

    Yes. The 2001-2002 Acura MDX takes one on the front left, and the front right axle is ordered separately.

    Does this CV axle assembly include the CV joints and ABS tone ring?

    Yes. A1 CARDONE 66-4202 is a complete axle with CV joints and a 50-tooth ABS tone ring, plus a new axle nut and an instruction sheet.

    What size is the shaft on this A1 CARDONE CV drive axle?

    The shaft is 28 mm (1.102 in) in diameter, and the compressed length is 708.02 mm (27.875 in). The inboard end has 29 splines and the outboard end has 28.

    Which axle nut goes on A1 CARDONE axles, and how is it tightened?

    A1 CARDONE 66-4202 comes with a new axle nut, so discard the old lock nut. Tighten the new one with a torque wrench to specification, never an impact wrench.
